Bailey Unicorn Cartagena Series 5

Brand:  Bailey
Berth:  4
Range:  Unicorn Series 5
View:  Not Available To View



This caravan is NOT available to view

RRP: £32,944

NOW: £32,299

SAVE £645
( No Delivery Charge )

· Transverse Island Double Bed with Rear Washroom · Twin Axle · Tracker System · Truma Solar Panel · ATC Trailer Control · AL‑KO Stabiliser

Picture Gallery - Click Any Image To Enlarge

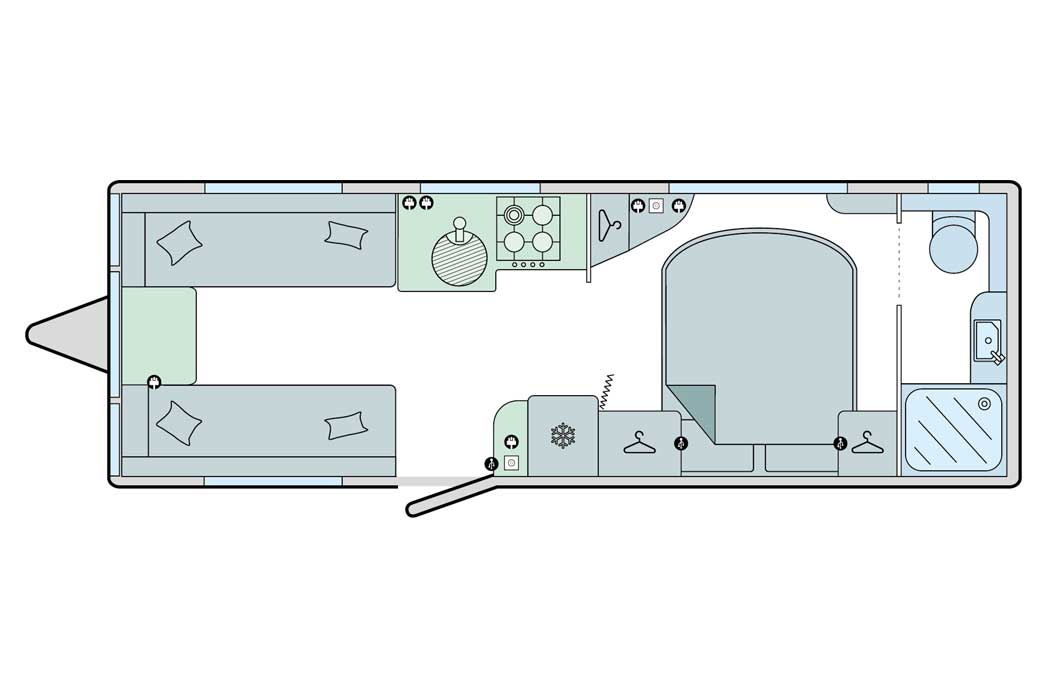

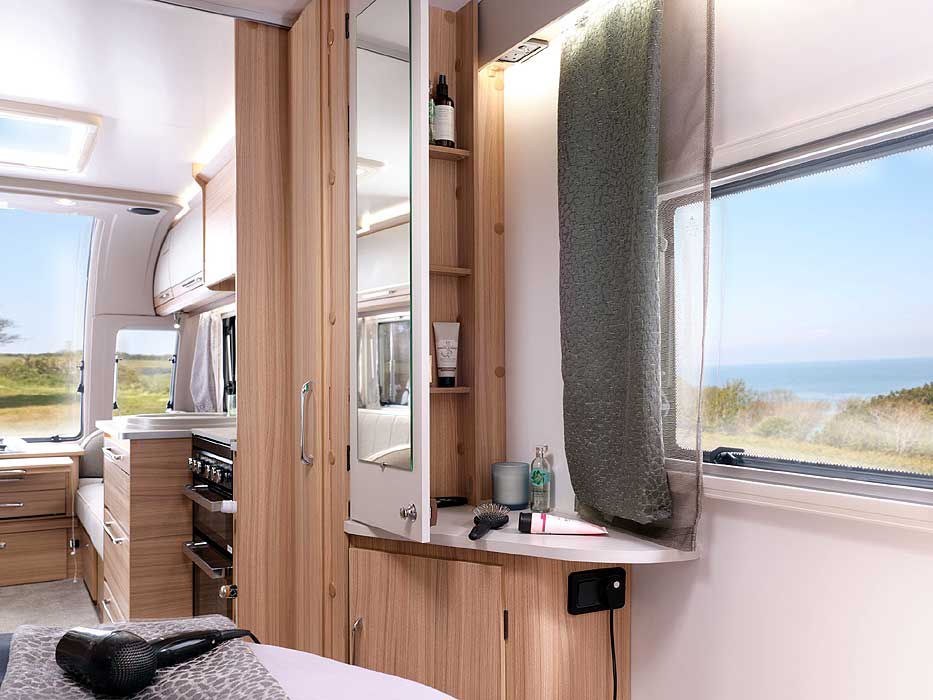

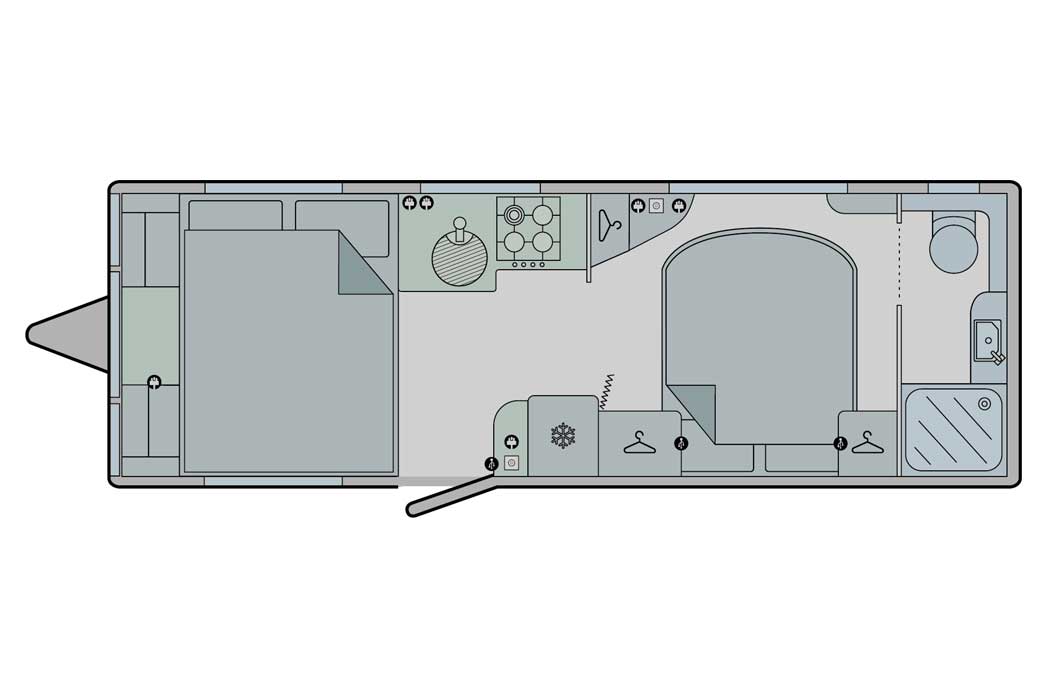

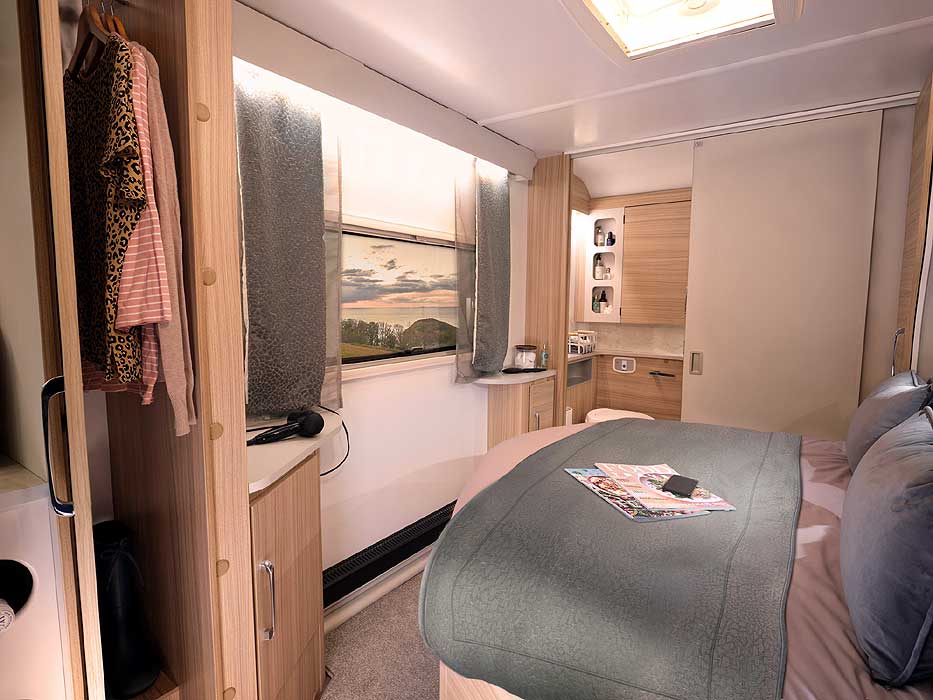

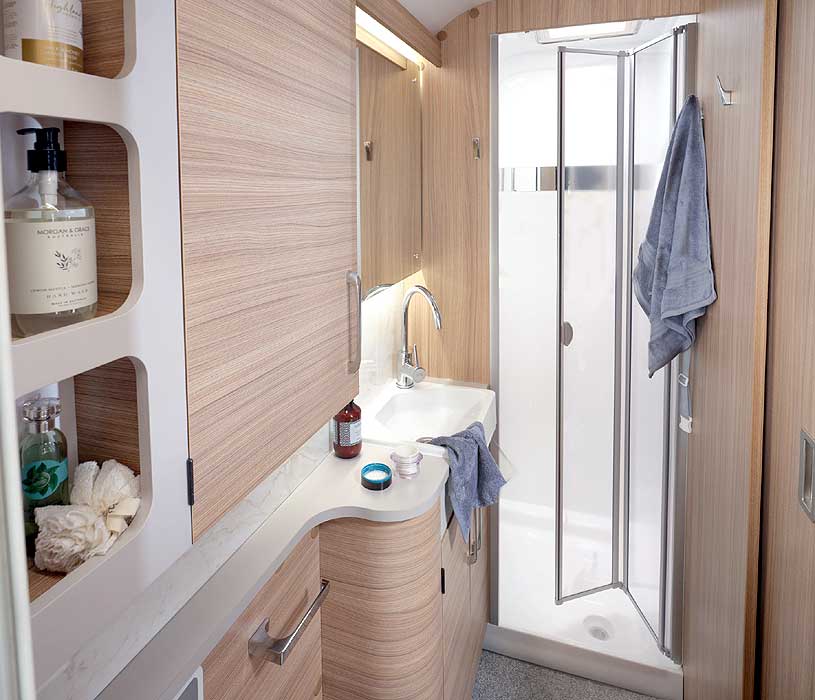

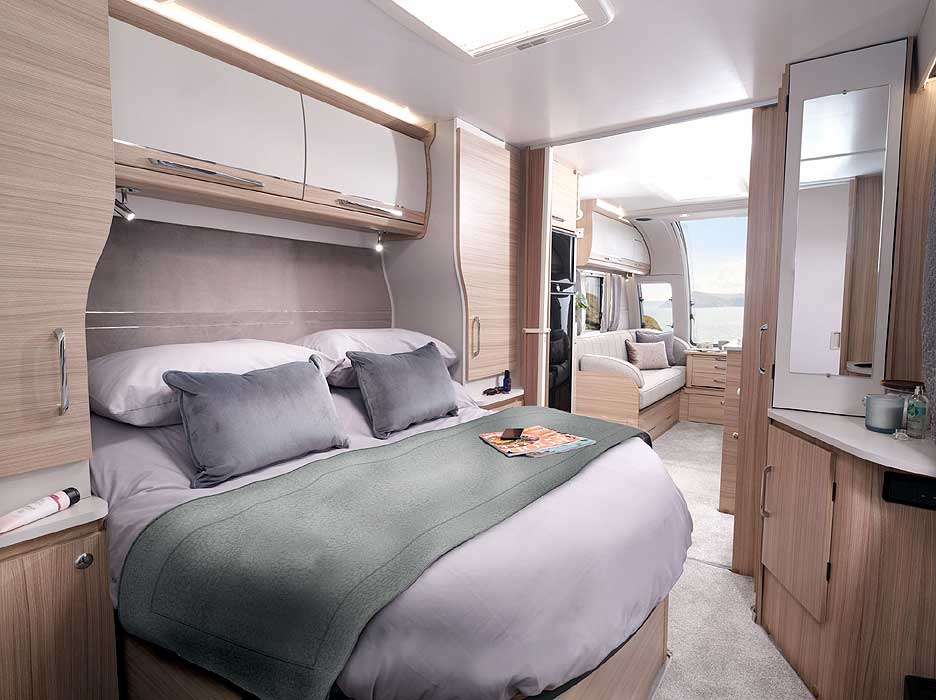

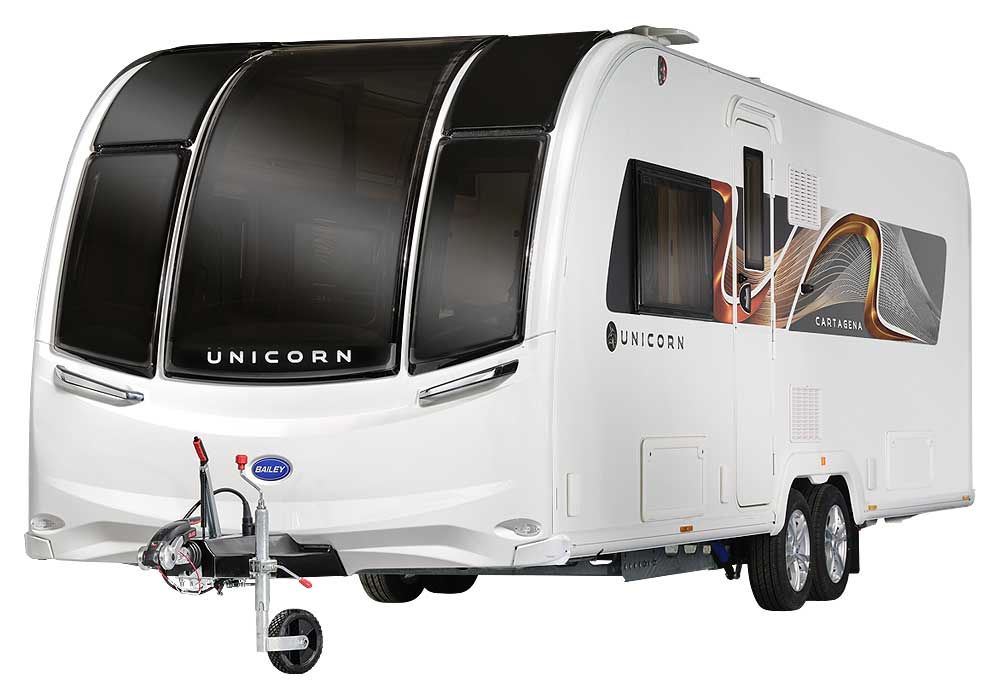

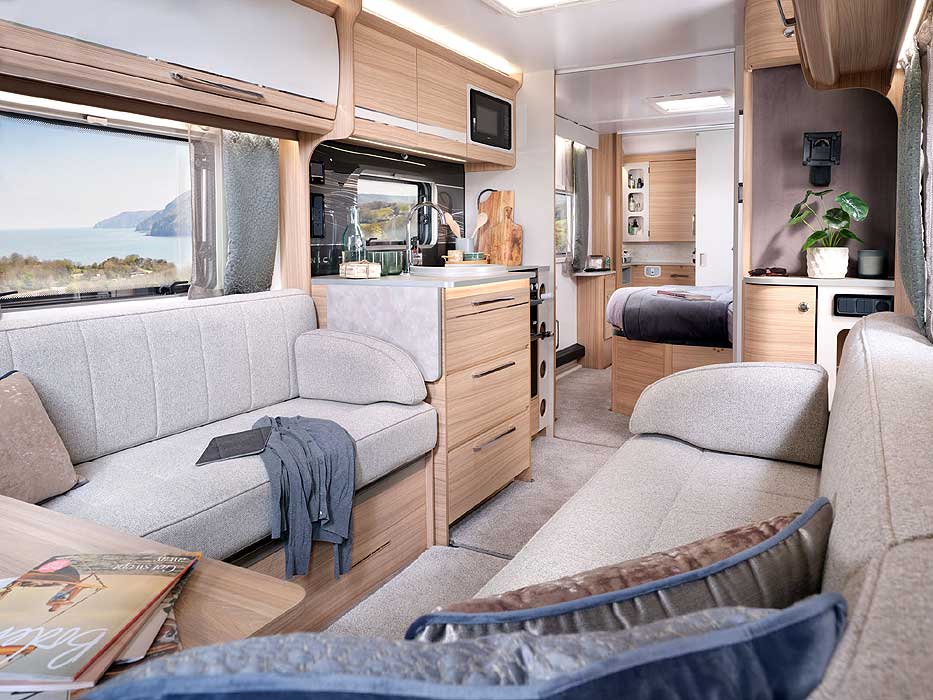

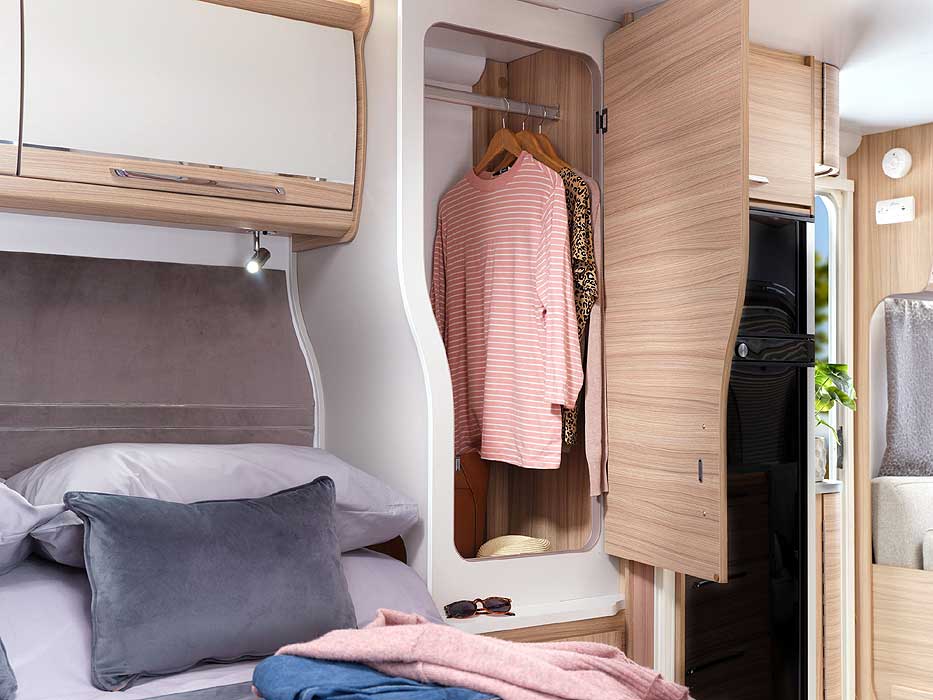

Bailey Unicorn Series 5 - Cartagena Exterior View from lounge to the rear washroom Cartagena Wardrobe Fold-Out Mirror with Storage Bedroom & Lounge Bedroom & Washroom Washroom Bailey Unicorn Series 5 - Cartagena - Daytime Layout Bailey Unicorn Series 5 - Cartagena - Nighttime Layout

Bailey Unicorn Black Edition Cartagena LogoCaravan Description - A Walk Through


There are two, twin axle, 4 berth models in the Unicorn Series 5 range and the Bailey Unicorn Cartagena is one of them; the other being the Pamplona.  Likewise, there is only one other model in the range with a fixed transverse island double bed with Washroom at the rear of the caravan and that is the Vigo ( a significant difference between them is the Vigo is single axle and the Cartagena is twin axle ).

Bailey Unicorn Series 5 Specifications Logo

Unicorn Cartagena Series 5 Specifications

  • Berth: 4
  • Axle Type: Twin
  • Shipping Length: 7.815 ( 25' 8" )
  • Overall Width: 2.264m ( 7' 5" )
  • Overall Height: 2.669m ( 8' 9" )
  • Internal Headroom: 1.96m ( 6' 5" )
  • MTPLM: 1725 kg
  • MRO: 1566 kg
  • Total User Payload: 159 kg
  • Bed Size - Front Double: 1.93m x 1.52m / 6'4" x 4'11" ( Measured from the widest point )
  • Bed Size - Front N/S Single: 1.95m x 0.63m / 6'5" x 2'1" ( Measured from the widest point )
  • Bed Size - Front O/S Single: 1.95m x 0.63m / 6'5" x 2'1" ( Measured from the widest point )
  • Bed Size - Rear Fixed Double: 1.90m x 1.44m / 6'3" x 4'9" ( Measured from the widest point )

Caravan Features

  • Unicorn Black Edition ATC Control SystemNEW vertical front infinity window and moulded surround with integral task lighting and speakers - A distinctive feature of the Bailey Unicorn Series 5, the vertical front infinity window provides lots of daylight into the front lounge area. It can be opened to provide ventilation and has an integral two part pleated flyscreen and a night blind as well.
  • AL-KO ATC Trailer Control System - an anti-snaking system for caravans. ATC monitors for instability, making every journey you take safer and more controlled.
  • AL-KO AKS 3004 Stabiliser - stabilisers reduce rolling and pitching whilst you are towing and significantly improve the smoothness of a journey. They give the driver greater confidence and control.
  • AL-KO Chasis - The Unicorn Cartagena has an AL-KO one piece galvanised steel chassis, braking system and running gear.
  • Unicorn Black Edition Truma Solar PanelTruma Solar Panel - an 80 watt solar panel mounted on the roof helps provide energy by charging up your battery for free. Keeps your leisure battery charged without any effort and doesn't rely on your memory!
  • Alu-Tech Bodyshell - Supplied with a 6-year transferable bodyshell integrity warranty and a 3-year transferable manufacturers warranty, the Alu-Tech bodyshell is a patented aluminium external framework that clamps the bodyshell panels together. As a result there are fewer external joints making the shell more weatherproof. Thicker panels provide significantly better insulation keeping you warm in the cold and cooler in the summer.
  • Tracker System - TRACKER Monitor Thatcham CAT 7 approved Stolen Vehicle Recovery System (including first 3 months subscription fee)
  • Alloy Wheels - New ‘Silver’ 15” TUV tested alloy wheels
  • ALDE Radiator Heating and Water Heating System - The Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating and washroom panel radiator. The Cartagena is also fitted with an Alde 3020 boiler providing improved fuel economy.
  • Branded DAB Radio / CD / MP3 Player - New branded DAB Radio with USB connection point and Bluetooth capabilityUnicorn Series 5 Alloy Wheels
  • Signal Reception - Fitted with Vision Plus Status 570 telescopic directional digital television aerial.
  • USB Sockets - Up to four USB sockets in directional spotlights and new wall mounted sockets
  • Oven & Grill - Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device.
  • Hob - Thetford duel fuel hob with electronic hot plate and three gas burners.
  • Microwave - New 700 watt Dometic microwave oven with non-moving ceramic hot plate
