Bailey Discovery D4-4

Brand:  Bailey
Berth:  4
Range:  Discovery
View:  Not Available To View

Availability:



This model is currently NOT available to view on our forecourt


RRP: £22,144

SALE PRICE: £21,499

SAVE £645
( No Delivery Charge )


· Front Lounge, Fixed Double Bedroom with Rear Washroom Layout · Single Axle · Alu-Tech Bodyshell · AL‑KO AKS 3004 Stabiliser


Picture Gallery - Click Any Image To Enlarge

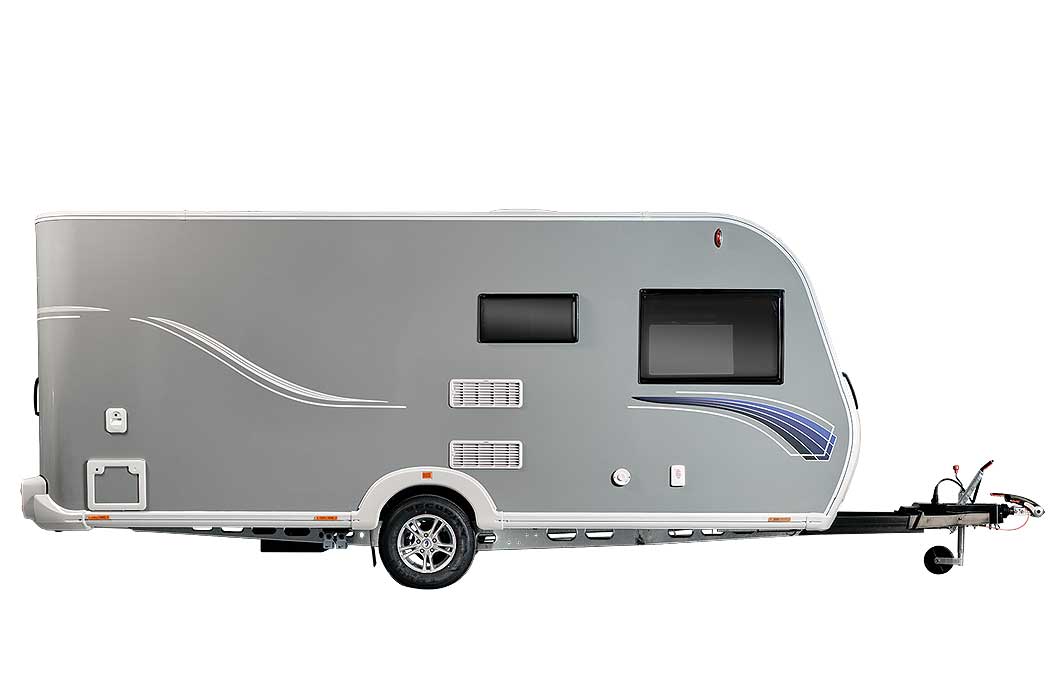

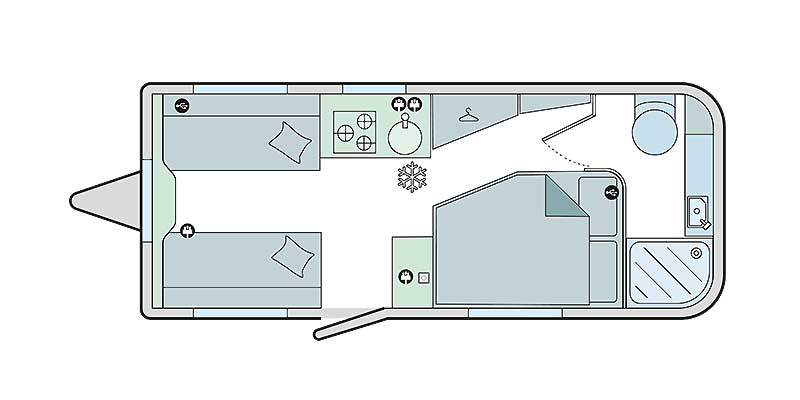

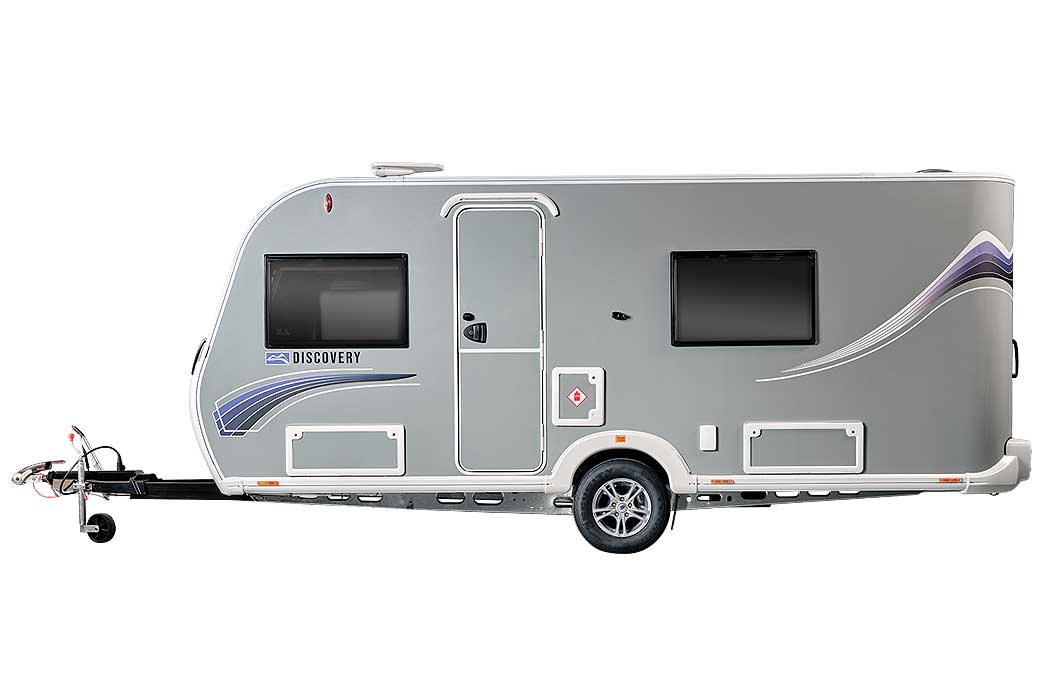

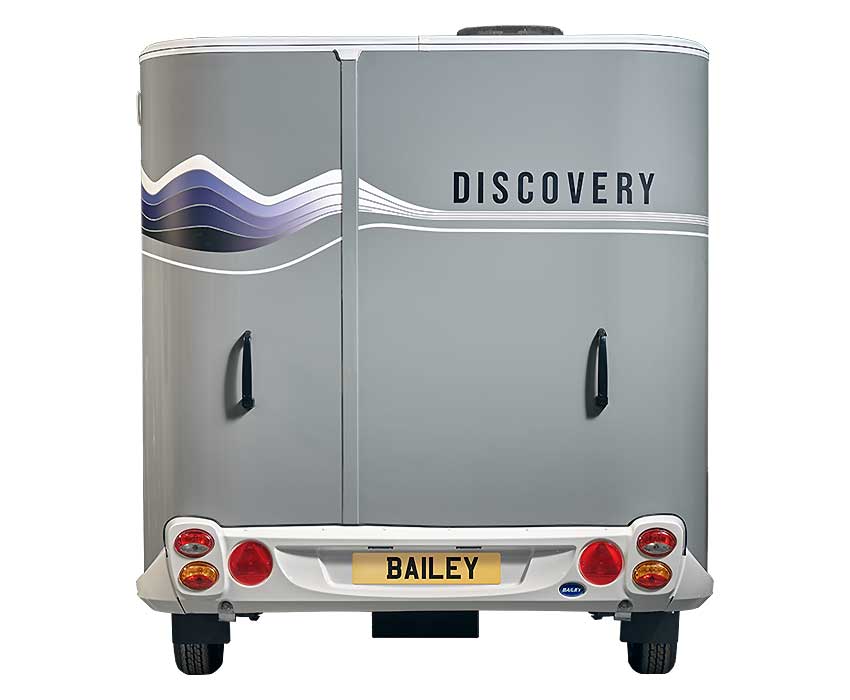

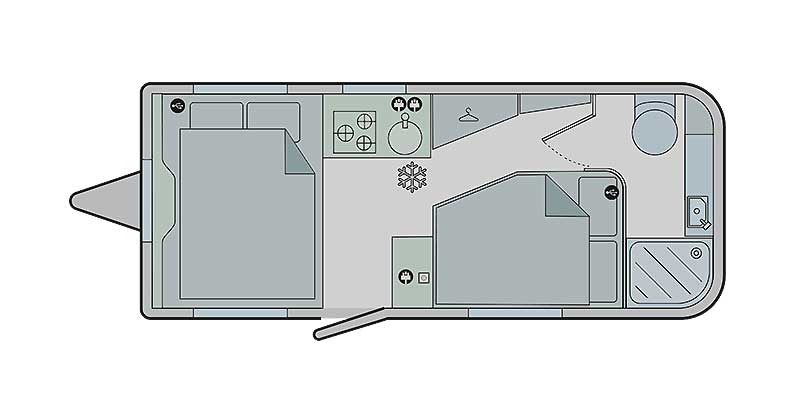

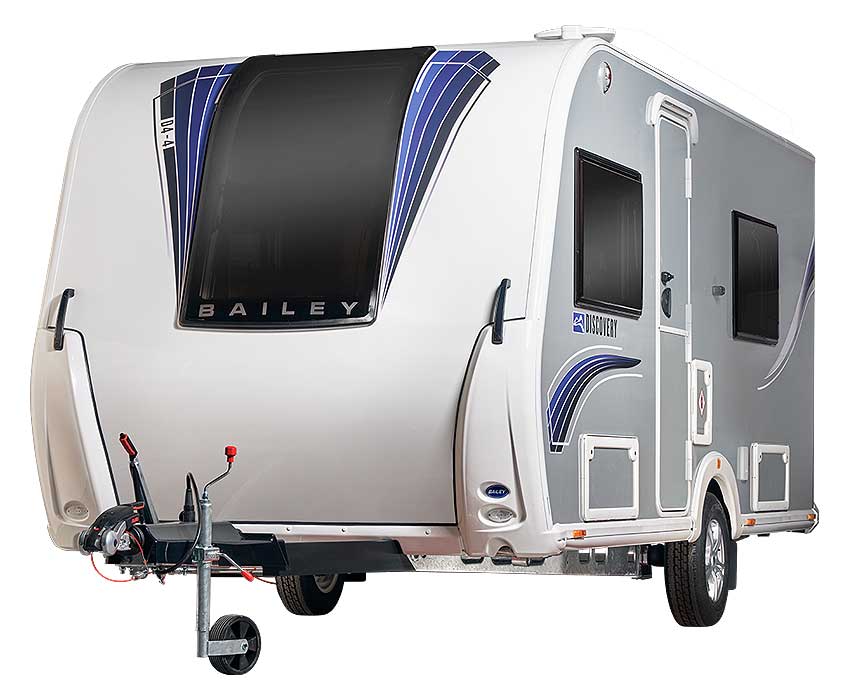

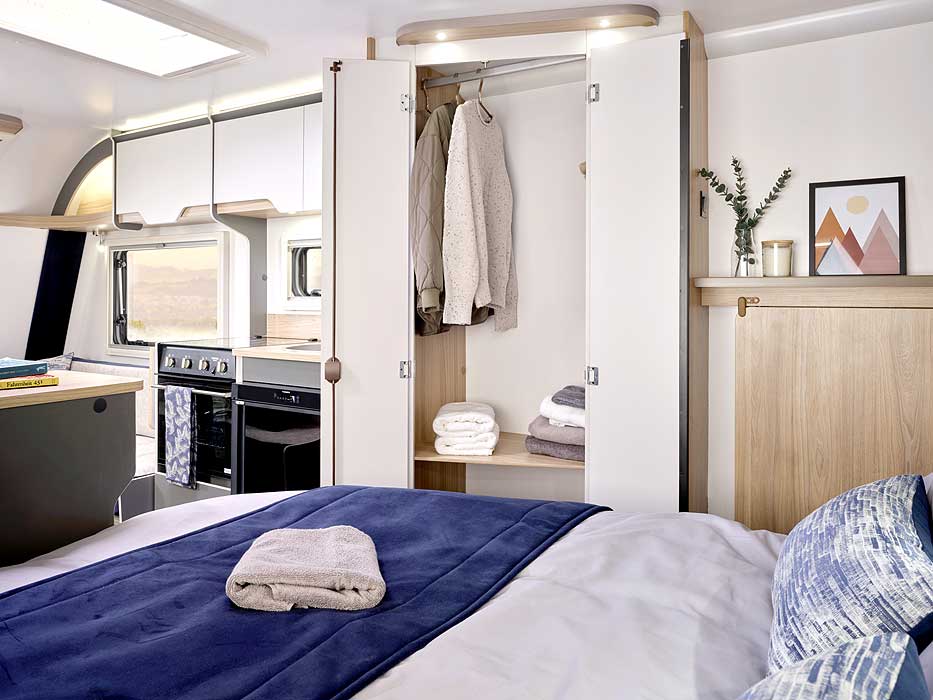

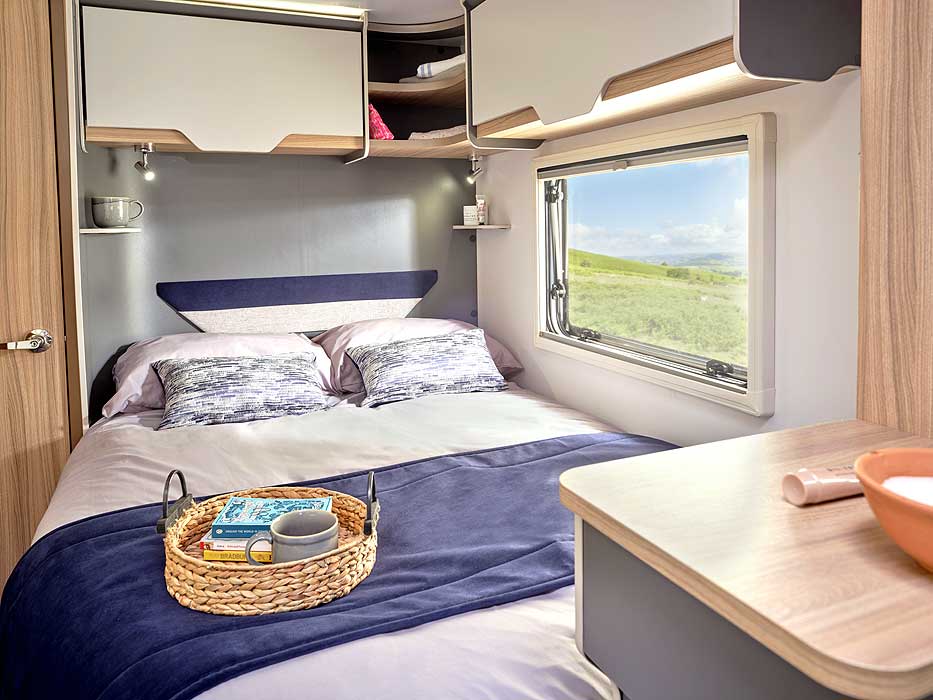

Discovery D4-4 - Exterior Discovery D4-4 - Nearside View Offside View Rear View Daytime Layout Nighttime Layout Lounge Area Discovery D4-4 - Bedroom with Fixed Double Bed Discovery D4-4 - Washroom Discovery D4-4 - Wardrobe and Shoe Storage Discovery D4-4 - Electrical Control Panel Directional Spotlight with USB Charger

Video Tour of the Bailey Discovery D4-4

Bailey Discovery D4-4 Video Link

Bailey Discovery II Logo

D4-4 Specifications

  • Berths: 4
  • Axle Type: Single Axle
  • Internal Length: 5.31m / 17′ 5″
  • Shipping Length: 7.149m / 23′ 5″
  • Overall Width: 2.228 m / 7 ' 4 "
  • Overall Height: 2.605 m / 8 ' 6 "
  • Internal Headroom: 1.960 m / 6 ' 5 "
  • Tyre Sizes: 185/R14C
  • MTPLM: 1247kg
  • MRO: 1102kg
  • Total User Payload: 146kg
  • Bed Sizes:
    Front Double:  1.88m x 1.53m ( 6' 2" x 5' 0" ) - Measured from the widest point
    Front N/S Single:  1.53m x 0.62m ( 5' 0" x 2' 0" ) - Measured from the widest point
    Front O/S Single:  1.53m x 0.62m ( 5' 0" x 2' 0" ) - Measured from the widest point
    Rear Fixed Double:  1.90m x 1.32m ( 6' 3" x 4' 4" ) - Measured from the widest point

Discovery Features

ALU-TECH BODYSHELL

  • Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
  • Four part fully bonded exterior panel assembly system
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)

Discovery D4-4 Exterior FeaturesEXTERIOR FEATURES

  • High performance GRP skinned duo-tone ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
  • AL-KO one-piece galvanised steel chassis, braking system and running gear
  • Flush fit front and rear impact resistant bumpers with grab handles
  • Aero-dynamic & aesthetically enhanced wrap-around rear bodyshell profile
  • Extended a-frame suitable for optional bike rack
  • NEW ‘Silver finish 14” TUV tested alloy wheels
  • Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
  • Modern look branded front window with darker screen print and NEW interior light header
  • Remis 2-part pleated flyscreen and blind to vertical skylight and Remis pleated flyscreen and blinds to principal windows
  • Midi Heki roof light in main habitation area
  • Hartal GRP skin two part large aperture exterior door with coat hook
  • LED awning light with integral water management system
  • Easy access exterior storage locker
  • Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
  • NEW Wrap-around graphics scheme

LIVING ROOM

  • NEW Bailey ‘Light Oak’, ‘Satin Cashmere’ and ‘Anthracite’ furniture finishes
  • ‘Satin Cashmere’ matt overhead locker doors with NEW ‘Light oak’ feature line and over-locker LED lighting
  • Premium quality, domestic style fixtures and fittings in polished chrome finish
  • ‘Light Oak’ finish freestanding table with dedicated storage
  • NEW front shelf with storage pocket and cubbies
  • Slatted front bed make-up system on easy glide track
  • Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
  • Angled seat ventilation boards for enhanced heating efficiency
  • Domestic style sofa seating featuring premium quality fabrics, sprung base cushions and foam back rests
  • NEW ‘Apollo’ soft furnishings with two square scatter cushions
  • Durable floor vinyl
  • Entrance door mat

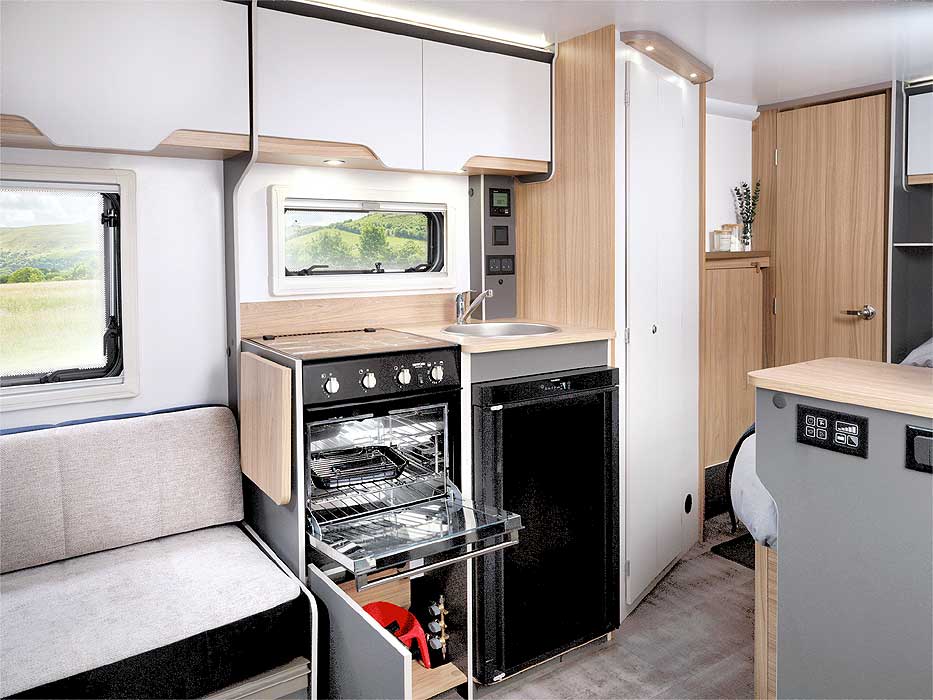

Discovery D4-4 Kitchen Features

KITCHEN

  • ‘Light Oak’ kitchen worktop laminate
  • Stainless steel large round kitchen sink with concealed fixings and mixer tap
  • Dometic 101 litre refrigerator and 12 litre freezer with high security travel lock
  • Thetford Triplex combination oven and grill

ENTERTAINMENT

  • Status 570 telescopic directional digital television aerial
  • One TV station with 230v, 12v and one aerial socket

BEDROOM

  • Superior foam fixed bed mattress construction

ELECTRICAL

  • 230v power inlet for mains hook-up
  • 12v internal lighting system including LED down-lighters and directional spotlights
  • 230v power supply with up to four interior sockets

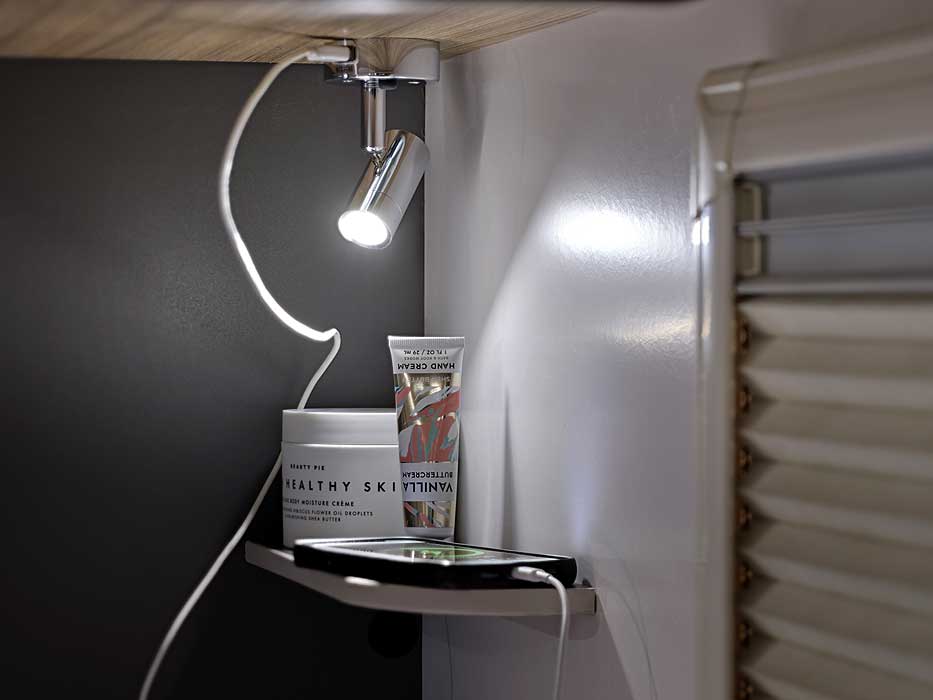

  • Two USB sockets in directional spotlights
  • NEW centrally located electrical control panel
  • Centrally located under floor leisure battery storage locker
  • Domestic style consumer unit
  • Switch mode battery charger with 20 amp output
  • RCD/MCB protection for mains electric system
  • 25 metre mains connecting lead

Discovery D4-4 Washroom FeaturesWASHROOM

  • Solid domestic style washroom door with domestic metal handle
  • Roof light located in washroom
  • Inboard shower unit with ceramic ball mixer tap, Ecocamel shower head and NEW riser bar
  • Bathroom storage cupboard

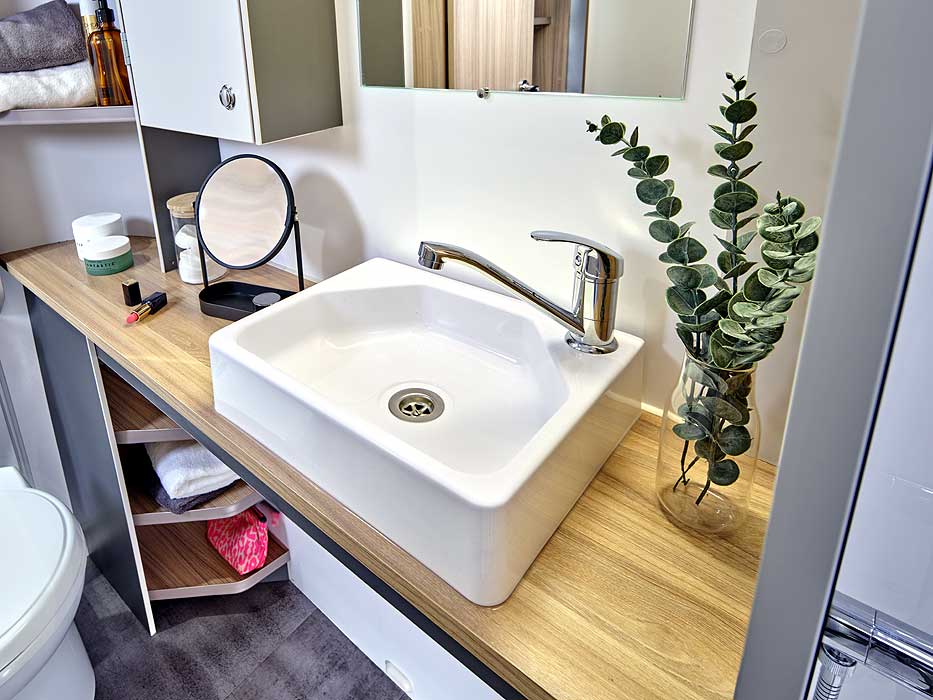

  • NEW Belfast style washroom hand basin and mixer tap
  • Thetford C-260 cassette toilet with integrated header tank

HEATING & PLUMBING

  • Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources
  • Truma user friendly digital control panel with adjustable fan and water boost functions
  • Propane/Butane 30mb gas regulator in gas locker compartment
  • Truma Ultraflow submersible pump
  • Outboard rigid pipe waste plumbing system

SAFETY & SECURITY

  • AL-KO AKS 3004 stabiliser
  • WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
  • Interior floor mounted spare wheel and tyre ( steel wheel )
  • High security one key operation throughout
  • CRiS identity number anti tamper labels attached to windows and inside gas locker
  • Concealed security data chip within caravan construction
  • Smoke alarm
  • Carbon Monoxide Alarm
  • European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council

OPTIONAL EXTRAS

  • ‘Willow Grey’ Split section loose fit drop in carpet
  • Full length door flyscreen
