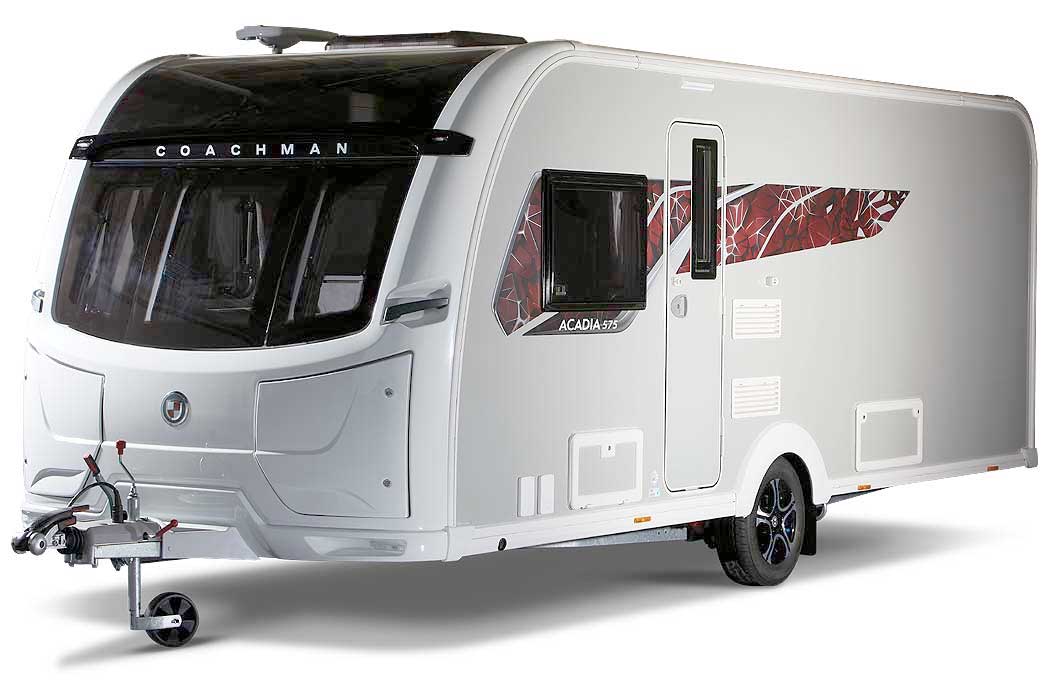

Coachman Acadia 575

Coachman Acadia 575

General

The 4 berth, Acadia 575 is one of four models, in the Acadia caravan range. There are two, 4 berth models. The other 4 berth model is the 545 which has a fixed double bed and a central washroom.

Video Tour of Coachman Acadia 575

Feature Highlights

• NEW Thetford N4090 91 litre electronic fridge freezer
• NEW 3D exterior graphics
• NEW Flatbed ventilated Microwave oven with co-ordinating flush fitting acrylic housing unit in ‘Sabbia’
• NEW Teleco Teleplus TV aerial with integrated FM/DAB reception capability
• Alde wet central heating and hot water system
• AL-KO AKS 3004 Stabiliser and Automatic Trailer Control system
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security

Virtual 360 Degrees Tour

Exterior Features

• European Whole Vehicle Type Approved ( EWVTA )
• EN1645 Grade 3 classification for heating and insulation – cold chamber tested
• Enhanced automotive style, fully bonded aerodynamic body shell
• Exterior side walls in ‘Silver Grey’ finish with NEW ‘Silver Grey’ exterior door
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• ABS front panel incorporating, integral grab handles, centrally fixed panoramic sunroof, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers
• ABS rear panel with high level brake light and stylish light clusters
• Step-on hitch cover with tread plates for easy cleaning of front windows
• 5 spoke, black diamond cut ‘Laufen’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel
• NEW 3D exterior graphics
• Shock absorbers for smoother towing
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light
• Front nearside access locker
• Additional under bed access locker
• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid
• Exterior access battery box with mains electric inlet and external satellite and aerial connections
• High security, one piece exterior door with one key locking system, flyscreen, window and blind, moulded inner panel and interior waste bin
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

Interior Features

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• Superior sprung construction upholstery to all models
• Quality foam construction mattresses ( fixed beds )
• Retractable bed giving even more freedom to walk around
• Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak – Dark Grey’ design
• Wood colour scheme in ‘Tibero’
• Luxurious deep pile stain resistant loose lay carpets
• Contemporary two toned curved cranked style locker doors, featuring twin chrome strip in ‘Legno Contatto and Taupe’ design to the lounge and bedroom with NEW soft close hinges
• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with LED halo lighting
• Centre console in ‘graphite’ with integrated down lighting
• Dovetail joints with metal runners to all drawer units
• Colour co-ordinated sockets and switches with black surrounds
• Easy action sliding pull out front bed make up mechanism
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats
• Contoured front chest of drawers with slide out extending table top mechanism
• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Roof light to front lounge and all fixed bed areas

Kitchen Features

• Mini roof light to kitchen area
• Smooth action mechanism Softrollo pleated blind with flyscreen to kitchen window
• Argent stainless steel sink, glass lid and bespoke separate drainer
• NEW Flatbed ventilated Microwave oven with co-ordinating flush fitting acrylic housing unit in ‘Sabbia’
• Chrome ceramic kitchen tap
• Kitchen laminate splashback in ‘Nila’ design
• Kitchen worktops ‘ Thala’ design
• Lift up kitchen worktop extension in ‘Thala’ design
• Thetford Dual fuel hob with enamel pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven and separate grill
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting
• Kitchen locker doors featuring twin chrome strip in ‘ Taupe’ design
• Kitchen lower doors in ‘Legno Contatto’ design
• NEW Thetford N4090 91 litre electronic fridge freezer

Bathroom Features

• Heated towel radiator in bathroom
• Fully lined large domestic style square shower cubicle with LED light and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Opaque window to all bathrooms
• Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• Top mounted vanity bowl with co-ordinating contemporary furniture doors in ‘Legno Contatto’ design and lit mirror
• Vanity chrome ceramic tap
• Vanity splash back ‘ Thala’ design

Audio and Entertainment

• FM radio
• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• Integral USB socket in the spotlights to fixed bed areas
• NEW Teleco Teleplus TV aerial with integrated FM/DAB reception capability

Electrical Features

• LED reading spot lights with touch controls and night-light setting
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Mains connection lead ( 25m )
• 12 volt system ( 20 Amp ) with battery charger and mains transformer
• 12 volt multi-function control panel for voltmeter, awning light, water pump, 12 volt lights and master switches

Plumbing and Heating

• Alde wet central heating and hot water system with 5 year Glycol, 3030 boiler with integrated pump and programmable LCD touch screen control panel
• Whale Watermaster inlet point – intelligent control with high flow submersible pump

Alde's wet central heating system has been meticulously planned and installed to ensure you always enjoy the optimum temperature throughout your caravan.

The radiant, hydronic central heating offers many benefits:

• It heats every part of the caravan creating a warm and inviting environment
• The glycol heating fluid circulates quietly around your caravan ensuring the least amount of disturbance
• It works off both gas and electric power sources which, can be combined when required
• Low 12V battery consumes a low amount of energy, preserving your battery life
• Pipes and radiators are mounted discreetly behind furniture, optimising available storage

Acadia 575 Specifications

• Berths: 4
• Axle Type: Single Axle
• Internal Length: 5760 mm / 18 ' 11"
• Overall Length: 7390 mm / 24 ' 3 "
• Overall Width: 2260 mm / 7 ' 5 "
• Overall Height ( including T.V Aerial ): 2675 mm / 8 ' 9 "
• Maximum Headroom: 1955mm / 6 ' 5 "
• MTPLM: 1570 kg
• Mass in Running Order: 1415 kg
• Personal Payload: 155 kg
• Bed Sizes:
  Front Double: 6’ 7” x 4’ 5” ( 2010 mm x 1345 mm )
  Front N/S Single: 4’ 9” x 2’ 4” ( 1465 mm x 730 mm )
  Front O/S Single: 4’ 9” x 2’ 4” ( 1465 mm x 730 mm )
  Rear Fixed Double: 6’ 2” x 4’ 6” ( 1875 mm x 1370 mm )
