Coachman Laser 545 Xtra

General

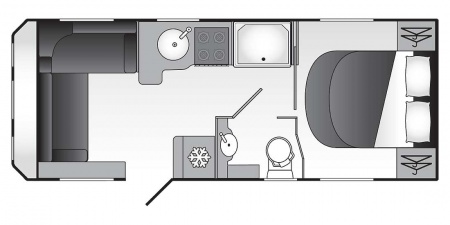

The 4 berth, Laser 545 Xtra is one of four models, in the Coachman Laser caravan range. The 620 Xtra is a 3 berth model, whilst the rest are 4 berth. Each model offers a different bedroom layout. The 545 Xtra has an island bed to the rear with a central washroom and an 'L' shaped seating arrangement to the front lounge.

Feature Highlights

• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• Insulation: EN1645 Grade 3 classification for heating and insulation - cold chamber tested.
• BBQ Point: Whale external gas BBQ point with Easi-Slide lid
• External Mains Socket: Whale 230 volt external mains socket with Easi-Slide lid
• Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Alde wet central heating and hot water system
• AL-KO AKS 3004 Stabiliser
• ATC: Automatic Trailer Control system
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security

Virtual 360 Degrees Tour

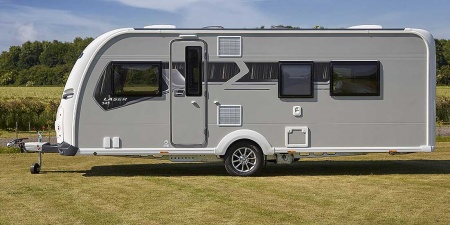

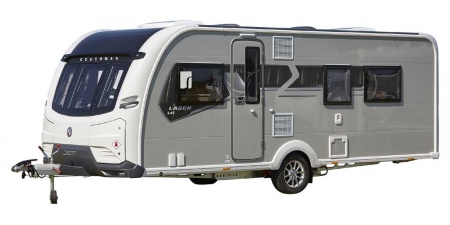

Exterior Features

• European Whole Vehicle Type Approved ( EWVTA )
• EN1645 Grade 3 classification for heating and insulation – cold chamber tested
• Enhanced automotive style, fully bonded aerodynamic body shell
• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• 13 pin car alignment cap
• ABS front panel incorporating, integral grab handles, fixed panoramic roof window, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers
• ABS rear panel with white integral grab handles, high level brake light and light clusters
• Step-on hitch cover with tread plates for easy cleaning of front windows
• 10 spoke, hyper silver ‘Falcon’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel
• Underfloor Whale insulated 36 litre fresh water tank system
• Mobile waste water carrier
• 3D exterior graphics
• Shock absorbers for smoother towing
• Heavy duty corner steadies for increased stability
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light and off-side services light
• Whale exterior cold shower
• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid
• Exterior access battery box with mains electric inlet and external satellite and aerial connections
• Seitz superior one piece exterior door with high security locking system and easy action flyscreen
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

Interior Features

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• Superior sprung construction upholstery to all models
• Quality foam construction mattresses (fixed beds)
• Retractable bed giving even more freedom to walk around
• Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak-Dark Grey’ design
• Wood colour scheme in ‘Leander’
• Luxurious deeper deep pile stain resistant loose lay carpets
• Surface mounted drop down flap fitted to the nearside seating entrance end panel (model specific)
• Contemporary two toned cranked style locker doors to the lounge and bedroom with soft close hinges
• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with decorative silver trim and LED layered lighting
• LED layered lighting
• Centre console in ‘graphite’ design with integrated down lighting
• Dovetail joints and metal runners all to drawer units
• Colour co-ordinated sockets and switches with chrome surrounds
• Easy action aluminium framed sliding front bed make up mechanism
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats
• Contoured front chest of drawers with slide out extending table top mechanism
• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Midi roof light to front lounge and fixed bed areas

Kitchen Features

• Under locker mounted extractor fan
• Mini roof light
• NEW Smooth action mechanism Softrollo pleated blind with flyscreen to kitchen window
• Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill
• Microwave oven with co-ordinating acrylic flush fitting housing unit
• Chrome ceramic kitchen tap
• Kitchen design with increased workspace and deeper cupboards
• Kitchen splashback in ‘Palladio’ design
• Composite surface kitchen worktops in ‘White Pebble’ design finish
• Larger lift up kitchen worktop extension
• Thetford dual fuel hob with cast iron pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven has an interior light and separate grill with chrome finish and improved efficiency
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting
• Kitchen wider upper locker door in ‘Sabbia’ acrylic with soft close hinges
• Positive catches to main kitchen drawers
• Dometic 10 series tall electronic fridge freezer with universal handed door mechanism

Bathroom Features

• White domestic style ladder radiator in bathroom
• Luxurious fully lined domestic style square shower cubicle with built in contrast panel, storage, LED downlight and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Opaque window to all bathrooms
• NEW Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• Vanity splashbacks in ‘Palladio Shiky’ design
• Vanity worktops in ‘Shiky’ design
• NEW Vanity chrome ceramic tap
• Contemporary dual coloured co-ordinated oval top mounted vanity bowl
• Stylish curved vanity unit

Audio and Entertainment

• DAB radio with entertainment speakers in lounge and bedroom areas
• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• Double USB socket situated at the main dedicated TV station
• Integral USB socket in the spotlights to fixed bed areas
• Mobile phone charging unit ( integrated into the bulkhead ) suitable for iPhone 8 & Samsung 7 and above
• Status 570 TV aerial with integrated FM/DAB reception capability including diplexer​​

Electrical Features

• LED reading spot lights with touch controls and night-light setting
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Mains connection lead ( 25m )
• 12 volt system ( 20 Amp ) with battery charger and mains transformer
• 12 volt multi-function control panel for voltmeter, awning light, water pump, 12 volt lights and master switches

Plumbing and Heating Features

• Alde wet central heating and hot water system with 5 year Glycol
• NEW 3030 boiler with integrated pump and programmable
• LCD touch screen control panel
• Whale Water Master mains connection
• Whale Watermaster inlet point – intelligent control with high flow submersible pump​​

Laser 545 Xtra Specifications

• Berths: 4
• Axle Type: Single Axle
• Internal Length: 5800 mm / 19 ' 0"
• Overall Length: 7430 mm / 24 ' 5 "
• Overall Width: 2440 mm / 8 ' 0 "
• Overall Height ( including T.V Aerial ): 2650 mm / 8 ' 8 "
• Internal Height: 1955 mm / 6 ' 5 "
• MTPLM: 1734 kg
• Mass in Running Order: 1579 kg
• Personal Payload: 155 kg
• Bed Sizes:
  Front Double: 6’ 6” x 4’ 6” ( 1980 mm x 1370 mm )
  Rear Fixed Double: 6’ 2” x 4’ 8” ( 1875 mm x 1425mm )
