Coachman Laser 575 Xtra

Coachman Laser 575 Xtra

General

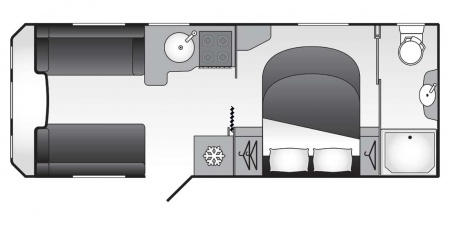

The 4 berth, Laser 575 Xtra is one of three models, in the Coachman Laser caravan range. Each model offers a different bedroom layout. The 575 Xtra has a transverse island bed to the rear with a rear en-suite washroom and a front lounge with seating either side of the caravan.

Video Tour of Coachman Laser 575 Xtra

Feature Highlights

• NEW 40 litre Onboard fresh water tank
• NEW Flatbed ventilated Microwave oven with co-ordinating flush fitting acrylic housing unit in ‘Nebbia’
• NEW domestic style flexible chrome and black kitchen tap
• NEW Thetford N4142 137 litre electronic fridge freezer
• NEW Contemporary two toned cranked style upper locker doors in ‘Leander’ and ‘Pebble’ to the lounge and bedroom with soft close hinges
• NEW Soft furnishings with higher and more supportive backrests, co-ordinating scatter cushions and sculptured armrests
• NEW 3D exterior graphics

Virtual 360 Degrees Tour

Exterior Features

• Enhanced automotive style, fully bonded aerodynamic body shell
• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• ABS front panel incorporating, integral grab handles, fixed panoramic roof window, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers
• ABS rear panel with white integral grab handles, high level brake light and light clusters
• Step-on hitch cover with tread plates for easy cleaning of front windows
• 10 spoke, hyper silver ‘Falcon’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel
• Mobile waste water carrier
• NEW 3D exterior graphics
• Shock absorbers for smoother towing
• Heavy duty corner steadies for increased stability
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light and off-side services light
• Additional under bed access locker
• Whale exterior cold shower
• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid
• Exterior access battery box with mains electric inlet and external satellite and aerial connections
• Seitz superior one piece exterior door with high security locking system and easy action flyscreen
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

Interior Features

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• Superior sprung construction upholstery to all models
• Quality foam construction mattresses
• Retractable bed giving even more freedom to walk around
• NEW Soft furnishings with higher and more supportive backrests, co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak-Dark Grey’ design
• Wood colour scheme in ‘Leander’
• Luxurious deep pile stain resistant loose lay carpets
• NEW Contemporary two toned cranked style upper locker doors in ‘Leander’ and ‘Pebble’ to the lounge and bedroom with soft close hinges
• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with decorative silver trim and LED layered lighting
• LED layered lighting
• Centre console in ‘graphite’ design with integrated down lighting
• Dovetail joints and metal runners all to drawer units
• Colour co-ordinated sockets and switches with chrome surrounds
• Easy action sliding pull out front bed make up mechanism
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats
• Contoured front chest of drawers with slide out extending table top mechanism
• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Midi roof light to front lounge and fixed bed areas

Kitchen Features

• Under locker mounted extractor fan
• Mini roof light
• Smooth action mechanism Softrollo pleated blind with flyscreen integrated behind NEW kitchen splash back in ‘Kaspio Oro’ design
• Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill
• NEW Flatbed ventilated Microwave oven with co-ordinating flush fitting acrylic housing unit in ‘Nebbia’
• NEW domestic style flexible chrome and black kitchen tap
• Kitchen design with increased workspace and deeper cupboards
• Composite surface kitchen worktops in ‘White Pebble’ design finish
• Larger lift up kitchen worktop extension
• Thetford dual fuel hob with cast iron pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven has an interior light and separate grill with chrome finish and improved efficiency
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting
• Kitchen wider upper locker door in ‘Nebbia’ acrylic with soft close hinges
• Positive catches to main kitchen drawers
• Pull out chrome baskets to lower kitchen cupboards
• NEW Thetford N4142 137 litre electronic fridge freezer

Bathroom Features

• White domestic style ladder radiator in bathroom
• Luxurious fully lined domestic style square shower cubicle with built in contrast panel, storage, LED downlight and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Opaque window to all bathrooms
• Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• NEW Vanity splashbacks in ‘Kaspio Oro’ design
• NEW Vanity worktops in ‘Raja’ design
• Vanity chrome ceramic tap
• Contemporary dual coloured co-ordinated oval top mounted vanity bowl
• Stylish curved vanity unit

Audio and Entertainment

• DAB radio with entertainment speakers in lounge and bedroom areas
• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• NEW Double USB socket and ‘C’ Port socket situated at the main dedicated TV station
• Wireless mobile phone charging unit ( integrated into the bulkhead ) suitable for iPhone 8 & Samsung 7 and above
• NEW Integral USB socket in the matt black spotlights to all areas
• NEW Teleco Teleplus TV aerial with integrated FM/DAB reception capability

Electrical Features

• NEW Matt black LED reading spot lights with USB ports to all areas
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Floor level courtesy lighting
• Alde load limiter
• Mains connection lead ( 25m )
• 12 volt system ( 20 Amp ) with battery charger and mains transformer
• 12 volt ‘Seattle’ multi-function digital control panel with awning light, water pump, water tank, 12v lights and master switches

Plumbing and Heating

• Alde wet central heating and hot water system with 5 year Glycol, 3030 boiler with integrated pump and programmable LCD touch screen control panel

Alde's wet central heating system has been meticulously planned and installed to ensure you always enjoy the optimum temperature throughout your caravan.

The radiant, hydronic central heating offers many benefits:

1. It heats every part of the caravan creating a warm and inviting environment
2. The glycol heating fluid circulates quietly around your caravan ensuring the least amount of disturbance
3. It works off both gas and electric power sources which, can be combined when required
4. Low 12V battery consumes a low amount of energy, preserving your battery life
5. Pipes and radiators are mounted discreetly behind furniture, optimising available storage

• Whale Watermaster inlet point – intelligent control with high flow submersible pump
• Whale Water Master mains connection
• NEW 40 litre Onboard fresh water tank

Safety and Security Features

• AL-KO ( ATC2 ) Trailer Control System - Anyone who has ever encountered critical driving situations when towing their caravan will know that the caravan reacts very sensitively at high speeds – and what the risks are! Even minor avoidance manoeuvres, side winds on bridges or wind pressure when overtaking trucks can soon cause the trailer to start snaking. ATC AL-KO Trailer Control actively counteracts such phenomena!
• AL-KO AKS 3004 Stabiliser - Suppresses the initial signs of caravan instability and improves ride comfort. Four specially designed friction pads work to effectively suppress the initial signs of caravan instability and snaking movements, providing excellent ride comfort for your car and caravan combination.
• AL-KO secure wheel lock
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security  ( fob controls the awning light )
• Optical smoke alarm
• Carbon monoxide detector
• CRIS ID number and concealed security data ID chips
• High security one key locking system supplied with 2 flip keys

Laser 575 Xtra Specifications

• Berths: 4
• Axle Type: Single Axle
• Internal Length: 5800 mm / 19 ' 0"
• Overall Length: 7430mm / 24 ' 5 "
• Overall Width: 2440mm / 8 ' 0 "
• Overall Height ( including T.V Aerial ): 2675 mm / 8 ' 9 "
• Overall Height ( including Air Conditioning ): 2750mm / 9’ 0”
• Maximum Headrom: 1955 mm / 6 ' 5 "
• MTPLM: 1722kg
• Mass in Running Order: 1567 kg
• Personal Payload: 155 kg
• Bed Sizes:
  Front Double: 7’ 2 “ x 4’ 7” ( 2200mm x 1390mm ) OR Front Singles x2: 4’ 11” x 2’ 4” ( 1505mm x 730mm )
  Rear Double: 6’ 2” x 4’ 6” ( 1875mm x 1370mm )
