Coachman Laser 665

General

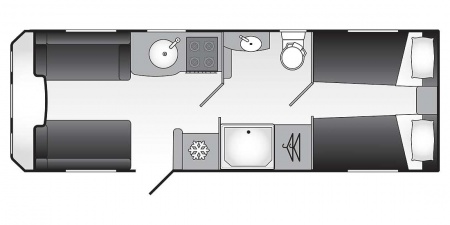

The 4 berth, Laser 665 is one of four models, in the Coachman Laser caravan range. The 545 Xtra, 575 Xtra and the 665 models are 4 berth whilst the 620 Xtra is the only 3 berth. Each model offers a different bedroom layout. The 665 has twin, fixed single beds to the rear, and a central washroom.

Feature Highlights

• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• Insulation: EN1645 Grade 3 classification for heating and insulation - cold chamber tested.
• BBQ Point: Whale external gas BBQ point with Easi-Slide lid
• External Mains Socket: Whale 230 volt external mains socket with Easi-Slide lid
• Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Alde wet central heating and hot water system
• AL-KO AKS 3004 Stabiliser
• ATC: Automatic Trailer Control system
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security

Virtual 360 Degrees Tour

Exterior Features

• European Whole Vehicle Type Approved ( EWVTA )
• EN1645 Grade 3 classification for heating and insulation – cold chamber tested
• Enhanced automotive style, fully bonded aerodynamic body shell
• Exterior side walls in ‘Silver Grey’ finish with ‘Silver Grey’ exterior door
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• 13 pin car alignment cap
• ABS front panel incorporating, integral grab handles, fixed panoramic roof window, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers
• ABS rear panel with white integral grab handles, high level brake light and light clusters
• Step-on hitch cover with tread plates for easy cleaning of front windows
• AL-KO hydraulic jacking kit
• 10 spoke, hyper silver ‘Falcon’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel
• Underfloor Whale insulated 36 litre fresh water tank system
• Mobile waste water carrier
• 3D exterior graphics
• Shock absorbers for smoother towing
• Heavy duty corner steadies for increased stability
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light and off-side services light
• Front nearside access locker
• Additional under bed access locker
• Whale exterior cold shower
• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid
• Exterior access battery box with mains electric inlet and external satellite and aerial connections
• Seitz superior one piece exterior door with high security locking system and easy action flyscreen
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

Interior Features

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• Superior sprung construction upholstery to all models
• Quality foam construction mattresses ( fixed beds )
• Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak-Dark Grey’ design
• Wood colour scheme in ‘Leander’
• Luxurious deeper deep pile stain resistant loose lay carpets
• Contemporary two toned cranked style locker doors to the lounge and bedroom with soft close hinges
• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with decorative silver trim and LED layered lighting
• LED layered lighting
• Centre console in ‘graphite’ design with integrated down lighting
• Dovetail joints and metal runners all to drawer units
• Colour co-ordinated sockets and switches with chrome surrounds
• Easy action sliding pull out front bed make up mechanism
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats
• Contoured front chest of drawers with slide out extending table top mechanism
• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Midi roof light to front lounge and fixed bed areas

Kitchen Features

• Under locker mounted extractor fan
• Mini roof light
• NEW Smooth action mechanism Softrollo pleated blind with flyscreen to kitchen window
• Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill
• Microwave oven with co-ordinating acrylic flush fitting housing unit
• Chrome ceramic kitchen tap
• Kitchen splashback in ‘Palladio’ design
• Composite surface kitchen worktops in ‘White Pebble’ design finish
• Lift up kitchen worktop extension
• Thetford dual fuel hob with cast iron pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven has an interior light and separate grill with chrome finish and improved efficiency
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting
• Kitchen wider upper locker door in ‘Sabbia’ acrylic with soft close hinges
• Positive catches to main kitchen drawers
• Dometic 10 series tall electronic fridge freezer with universal handed door mechanism

Bathroom Features

• White domestic style ladder radiator in bathroom
• Luxurious fully lined domestic style square shower cubicle with built in contrast panel, storage, LED downlight and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Opaque window to all bathrooms
• NEW Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• Vanity splashbacks in ‘Palladio Shiky’ design
• Vanity worktops in ‘Shiky’ design
• NEW Vanity chrome ceramic tap
• Contemporary dual coloured co-ordinated oval top mounted vanity bowl
• Stylish curved vanity unit

Audio and Entertainment

• DAB radio with entertainment speakers in lounge and bedroom areas
• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• Double USB socket situated at the main dedicated TV station
• Integral USB socket in the spotlights to fixed bed areas
• Mobile phone charging unit (integrated into the bulkhead) suitable for iPhone 8 & Samsung 7 and above
• Status 570 TV aerial with integrated FM/DAB reception capability including diplexer

Electrical Features

• LED reading spot lights with touch controls and night-light setting
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Floor level courtesy lighting
• Alde load limiter
• Mains connection lead ( 25m )
• 12 volt system ( 20 Amp ) with battery charger and mains transformer
• 12 volt ‘Seattle’ multi-function digital control panel with awning light, water pump, water tank, 12v lights and master switches​​

Plumbing and Heating Features

• Alde wet central heating and hot water system with 5 year Glycol
• NEW 3030 boiler with integrated pump and programmable
• LCD touch screen control panel
• Whale Water Master mains connection
• Whale Watermaster inlet point – intelligent control with high flow submersible pump​​​​​

Laser 665 Specifications

• Berths: 4
• Axle Type: Twin Axle
• Internal Length: 6265 mm / 20 ' 7"
• Overall Length: 7895 mm / 25 ' 11 "
• Overall Width: 2310 mm / 7 ' 7 "
• Overall Height ( including T.V Aerial ): 2650 mm / 8 ' 8 "
• Internal Height: 1955 mm / 6 ' 5 "
• MTPLM: 1828 kg
• Mass in Running Order: 1668 kg
• Personal Payload: 160 kg
• Bed Sizes:
  Front Double: 6’ 9 “ x 4’ 7” ( 2075mm x 1390mm ) OR Front Singles x2: 4’ 11” x 2’ 4” ( 1505mm x 730mm )
  Rear Fixed Singles ( x2 ): 6’ 3” x 2’ 7” ( 1900mm x 800mm max )
