Coachman VIP 575

Coachman VIP 575

General

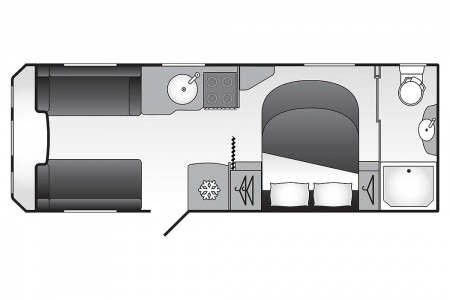

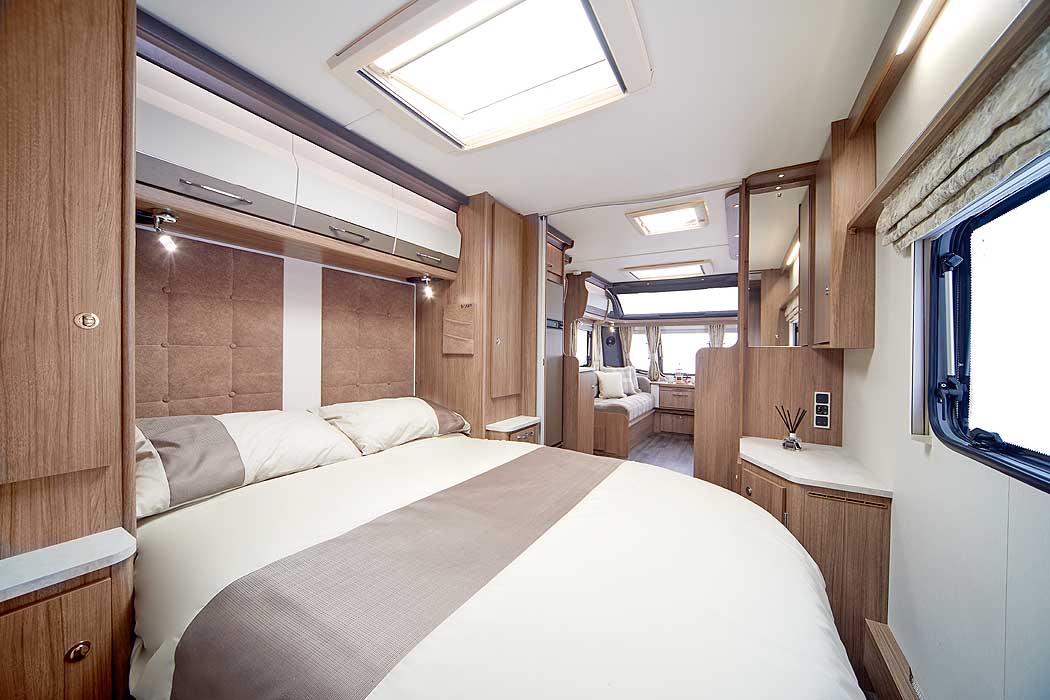

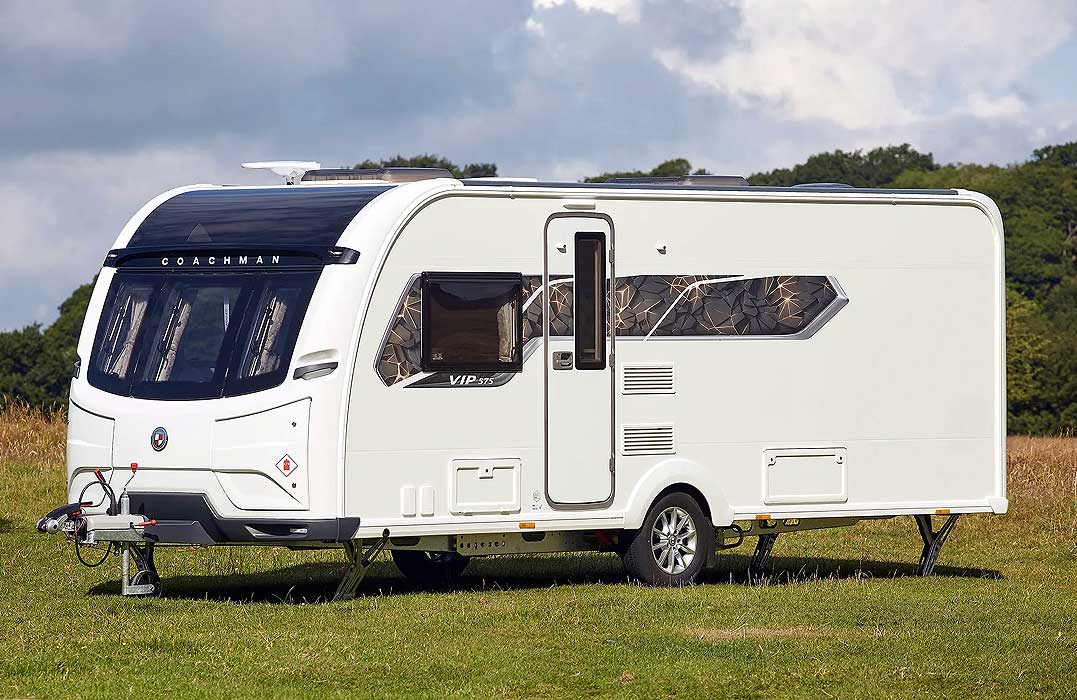

The Coachman VIP 575 is one of three, 4 berth caravans in the VIP range. Just like the 675, it has a transverse fixed island double bed with rear en-suite washroom but it has a shorter overall length than the 675.

Video Tour of Coachman VIP 575

Feature Highlights

• NEW Kitchen lower flat doors in ‘Pebble’
• NEW Thetford N4090 91 litre electronic fridge freezer
• NEW Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill
• NEW Contemporary cranked style locker doors in ‘Tibero’ with ‘Pebble & ‘Titan’ to the lounge and bedroom with soft close hinges
• NEW Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• NEW Double USB socket and ‘C’ Port socket situated at the main dedicated TV station
• NEW Teleco Teleplus TV aerial with integrated FM/DAB reception capability

Virtual 360 Degrees Tour

Exterior Features

• European Whole Vehicle Type Approved ( EWVTA )
• EN1645 Grade 3 classification for heating and insulation – cold chamber tested
• Enhanced automotive style, fully bonded aerodynamic body shell
• AL-KO, galvanised steel chassis with euro axle, overrun device and easy action handbrake
• Screwless, fully bonded awning rail to both sides
• 25mm aluminium sandwich sidewall construction with polystyrene insulation core
• 25mm sandwich construction roof for added strength and insulation
• 45mm sandwich construction floor with internal bracing for added strength
• 13 pin car ‘Jaeger’ connector
• ABS front panel incorporating, integral grab handles, fixed panoramic roof window, 3 flush fitting opening front windows and dual integrated front lockers for gas and storage with gas strut retainers

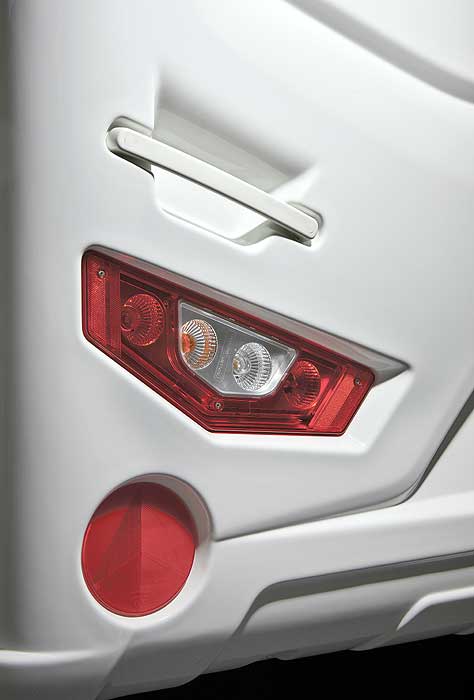

• ABS rear panel with white integral grab handles, high level brake light and light clusters
• Contrast colour step-on hitch cover with tread plates for easy cleaning of front windows
• 10 spoke, hyper silver ‘Falcon’ alloy wheels and mud flaps
• Underslung AL-KO spare wheel carrier complete with steel spare wheel

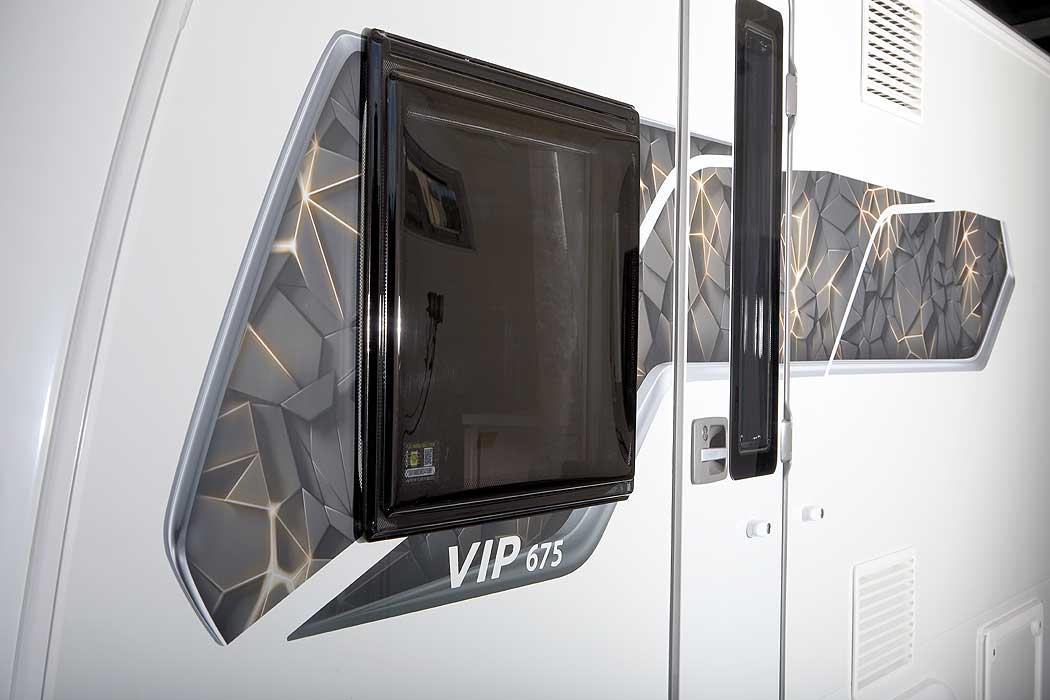

• NEW 3D exterior graphics
• Shock absorbers for smoother towing
• Heavy duty corner steadies for increased stability
• ‘Primo’ range Polyplastic double glazed opening side windows
• LED awning light and off-side services light
• Front nearside access locker
• Additional under bed access locker

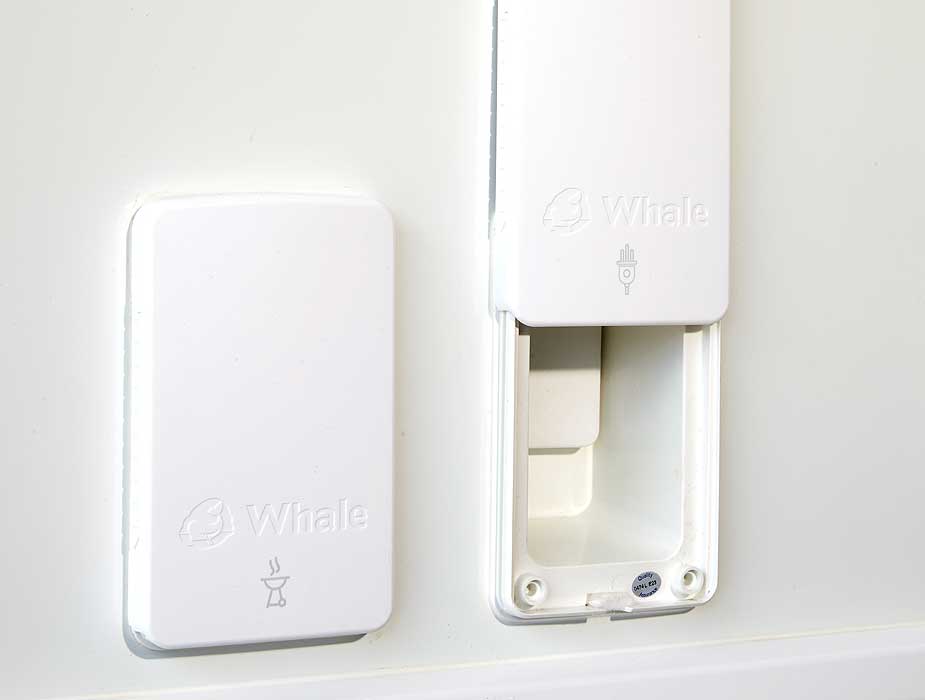

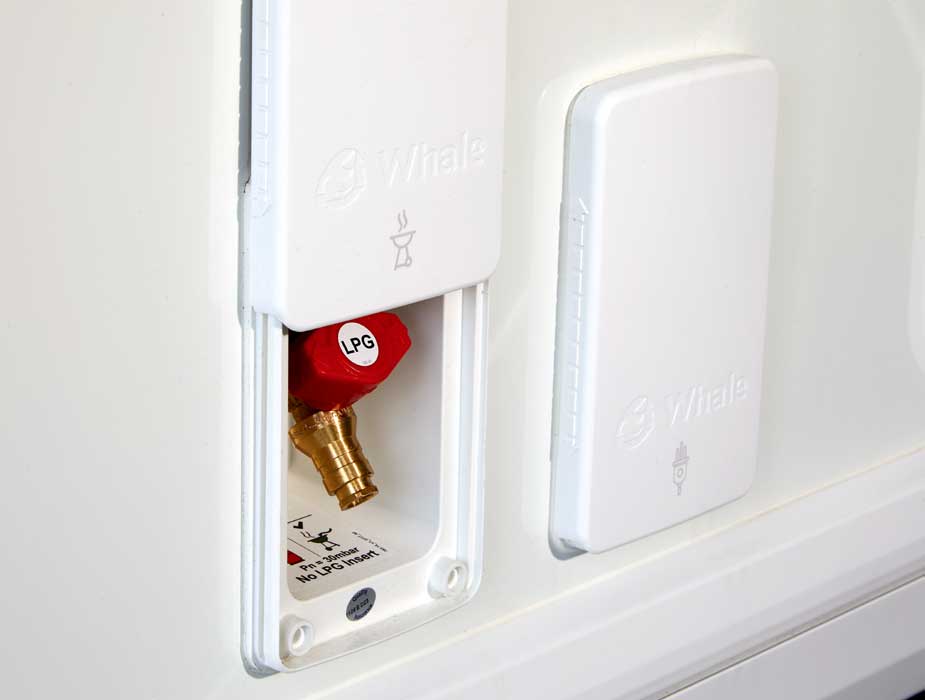

• Whale external gas BBQ point with Easi-Slide lid
• Whale 230 volt external mains socket with Easi-Slide lid

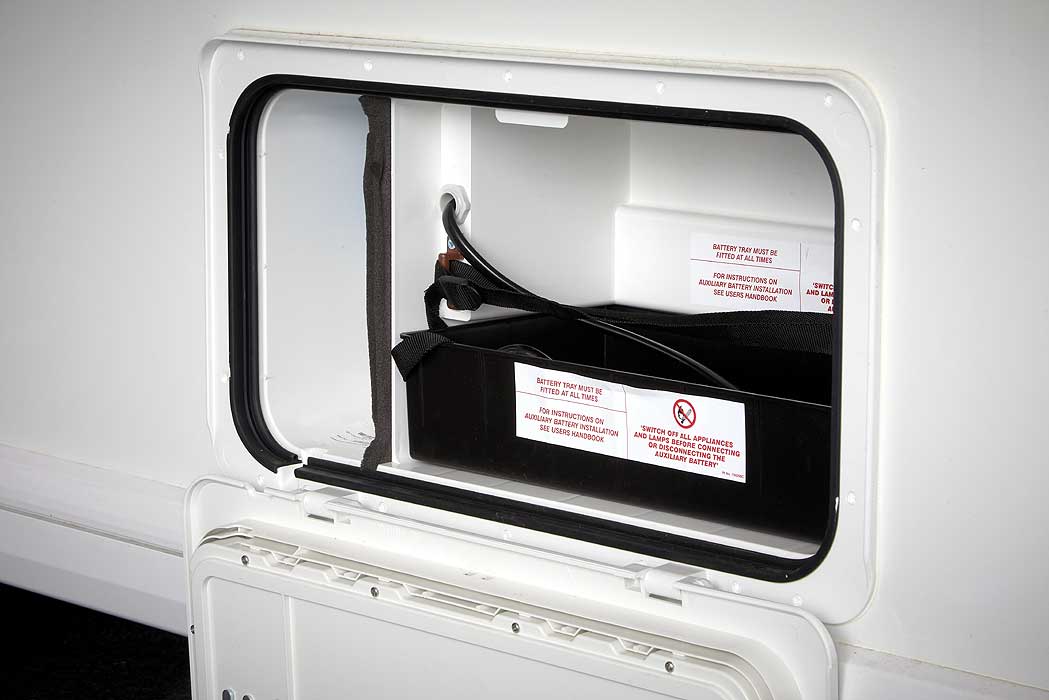

• Exterior access battery box with mains electric inlet and external satellite and aerial connections

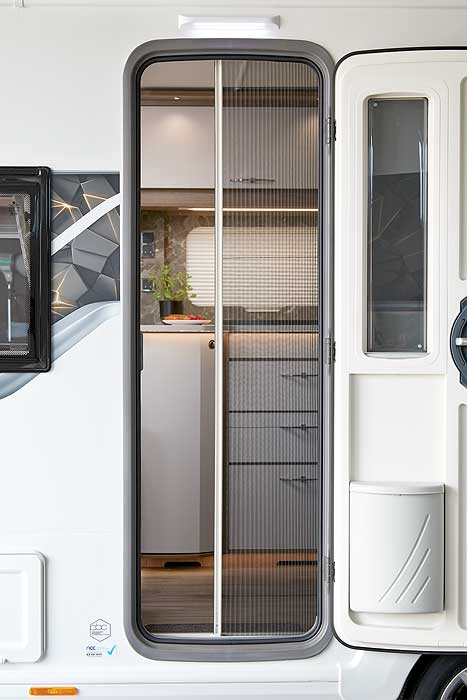

• Seitz superior one piece exterior door with high security locking system and easy action flyscreen
• Entrance step
• Whale bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

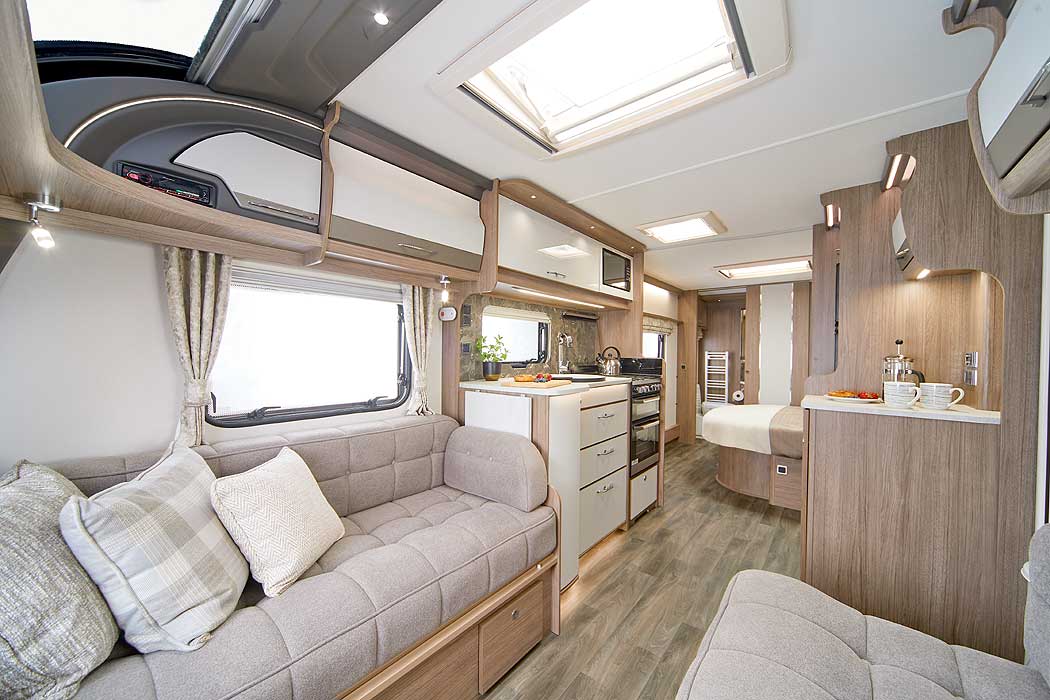

Interior Features

• Smooth action mechanism Softrollo pleated blinds with flyscreens to all windows
• Premium high quality fabrics
• Superior sprung construction upholstery to all models
• Quality foam construction mattresses

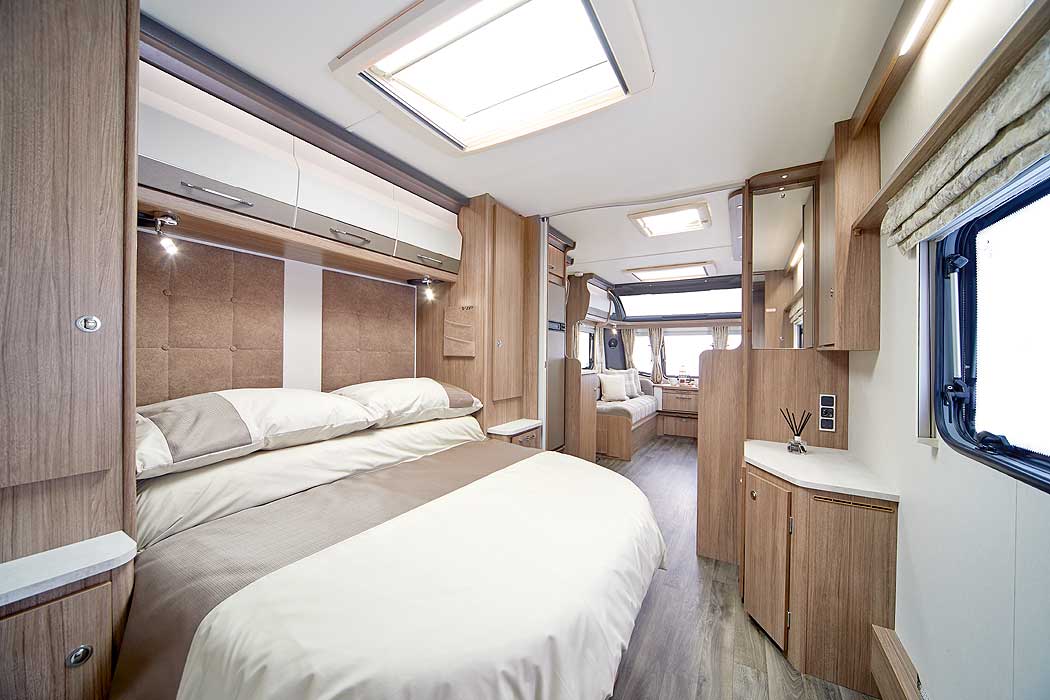

• Retractable bed giving even more freedom to walk around
• NEW Soft furnishings with co-ordinating scatter cushions and sculptured armrests
• Domestic floor covering in ‘French Oak-Dark Grey’ design
• Wood colour scheme in ‘Tibero’
• Luxurious deep pile stain resistant loose lay carpets
• NEW Contemporary cranked style locker doors in ‘Tibero’ with ‘Pebble & ‘Titan’ to the lounge and bedroom with soft close hinges

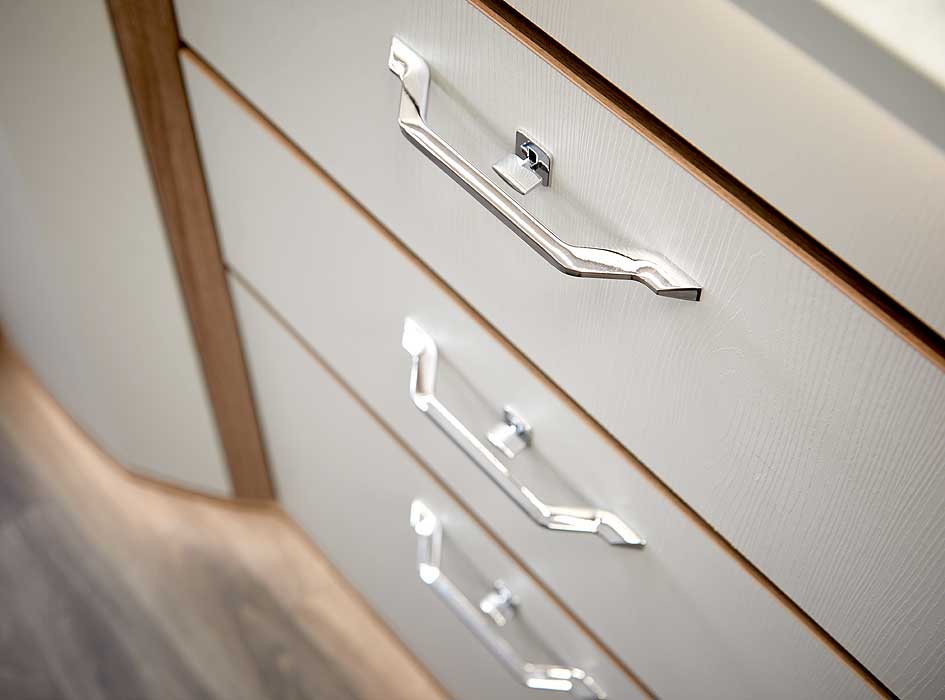

• Stylish polished chrome finish furniture handles
• Overhead locker profile in ‘graphite’ design with LED lighting
• Centre console in ‘graphite’ design with integrated down lighting
• Dovetail joints and metal runners all to drawer units
• Colour co-ordinated sockets and switches with chrome surrounds

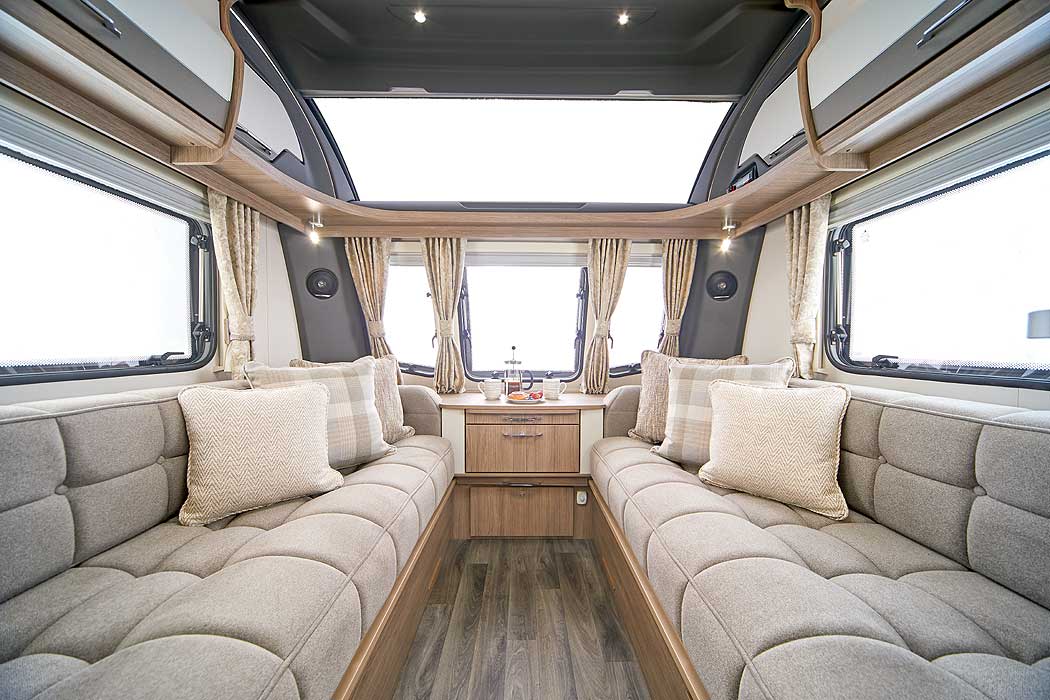

• Easy action sliding pull out front bed make up mechanism
• Easy access aluminium lift up bed frames, gas strut supported with sprung beech slats

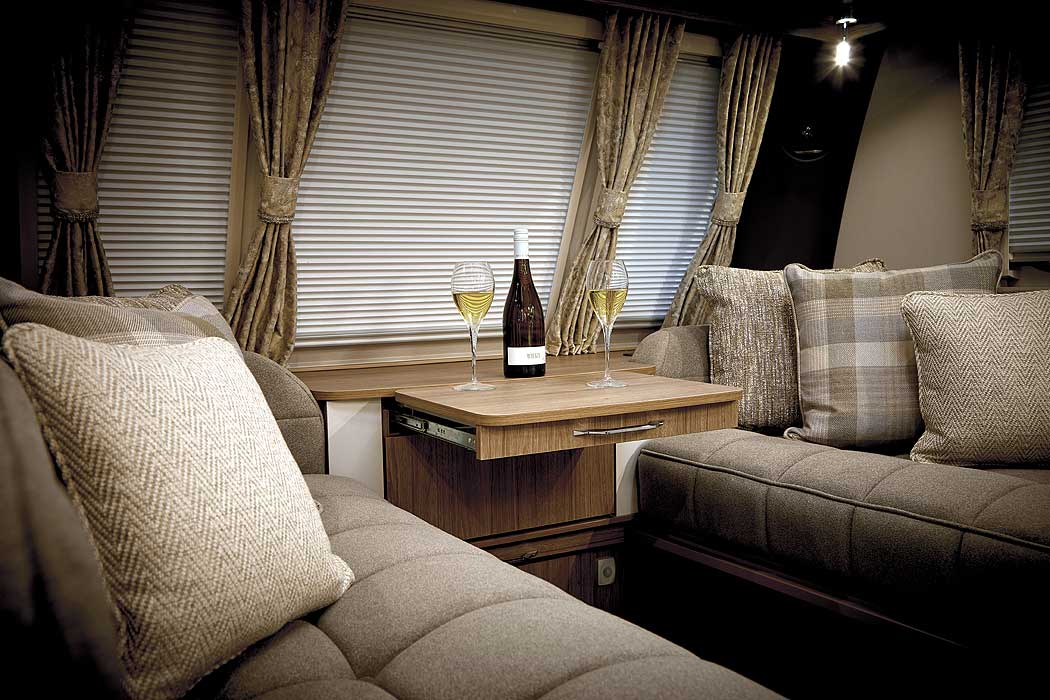

• Contoured front chest of drawers with slide out extending table top mechanism

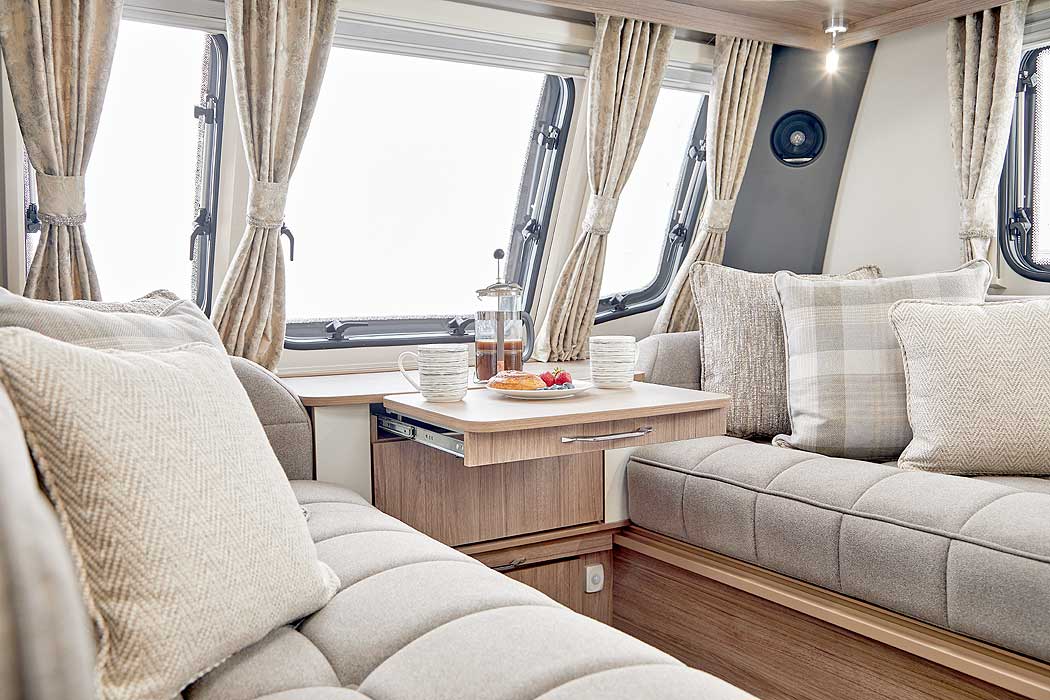

• Large, lightweight, free standing table with dedicated storage area
• Seating and bed ventilation boards throughout
• Removable entrance mat with tray
• Shelving in selected overhead lockers
• Midi roof light to front lounge and all fixed bed areas

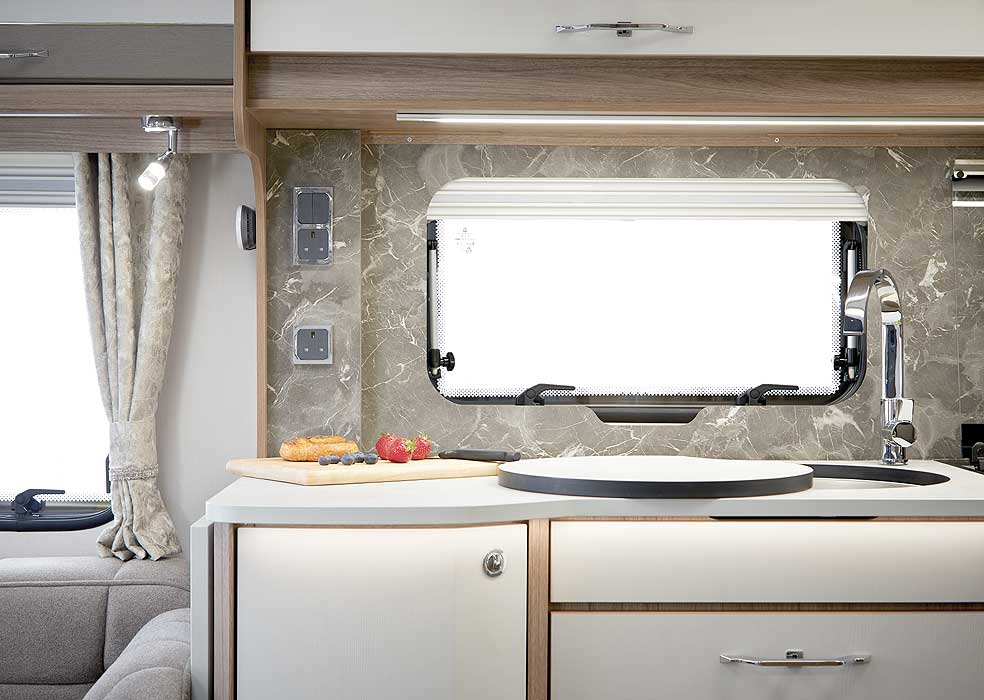

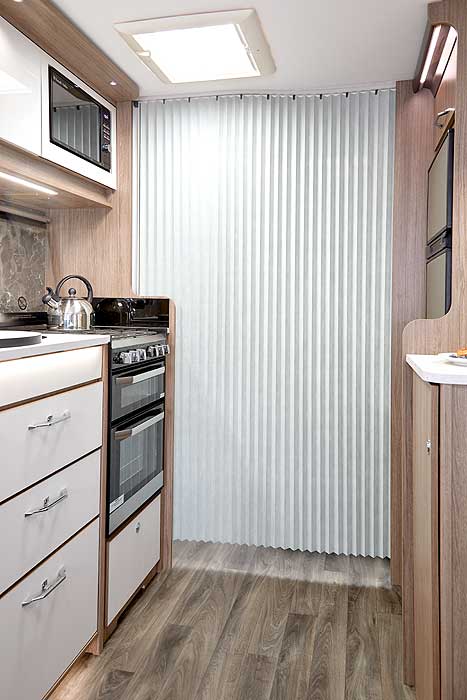

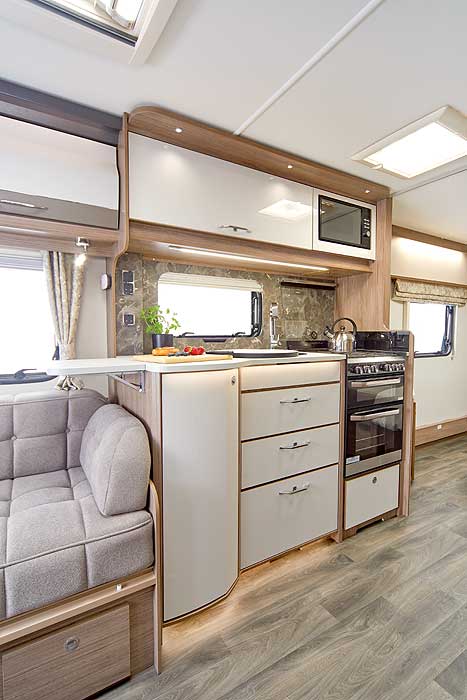

Kitchen Features

• Omnivent three speed, two way roof fan with translucent dome
• NEW kitchen splashback in ‘Marmo Toscano Matt’ with integrated smooth action mechanism Softrollo pleated blind with flyscreen
• NEW Thetford round stainless steel underslung sink with worktop/flush fitting bowl infill

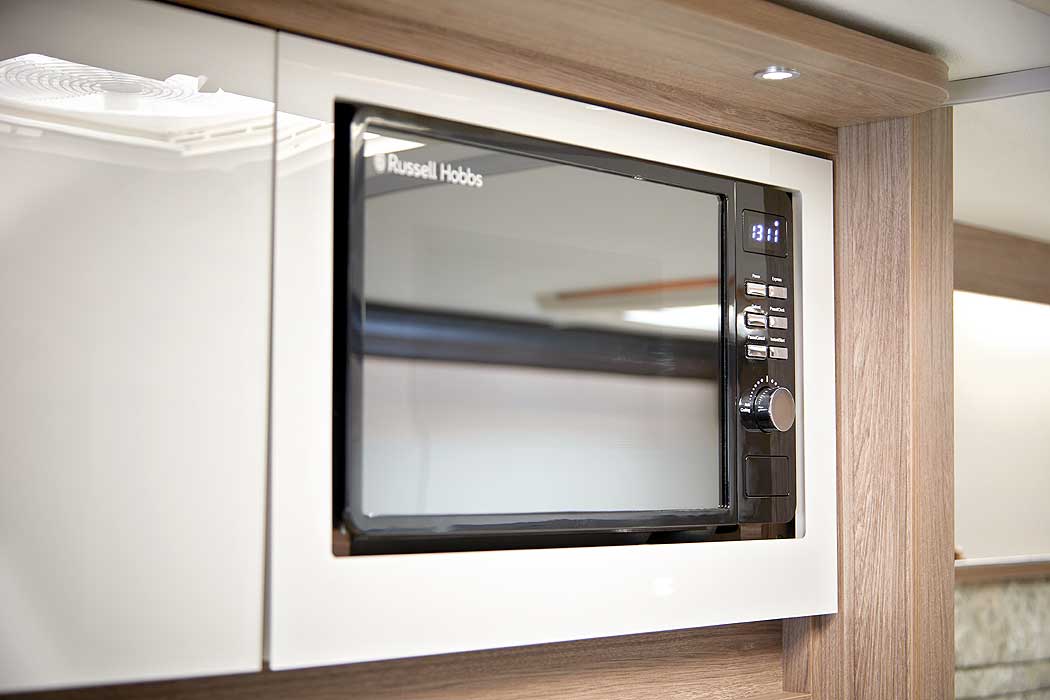

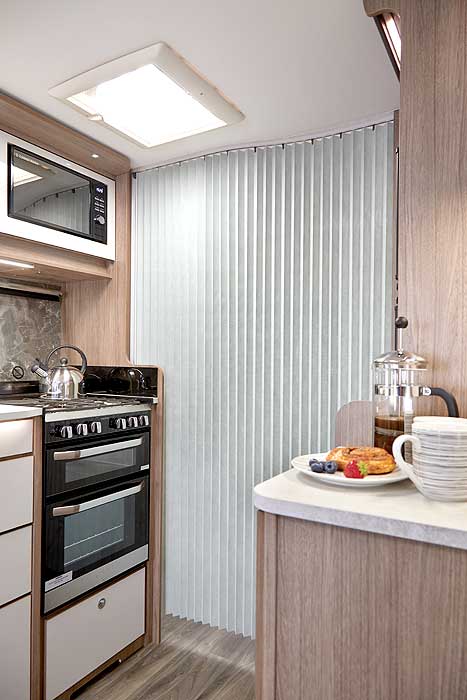

• NEW Flatbed ventilated Microwave oven with co-ordinating flush fitting acrylic housing unit in ‘Nebbia’
• Chrome ceramic kitchen tap
• NEW kitchen worktops in ‘Raja’ design finish

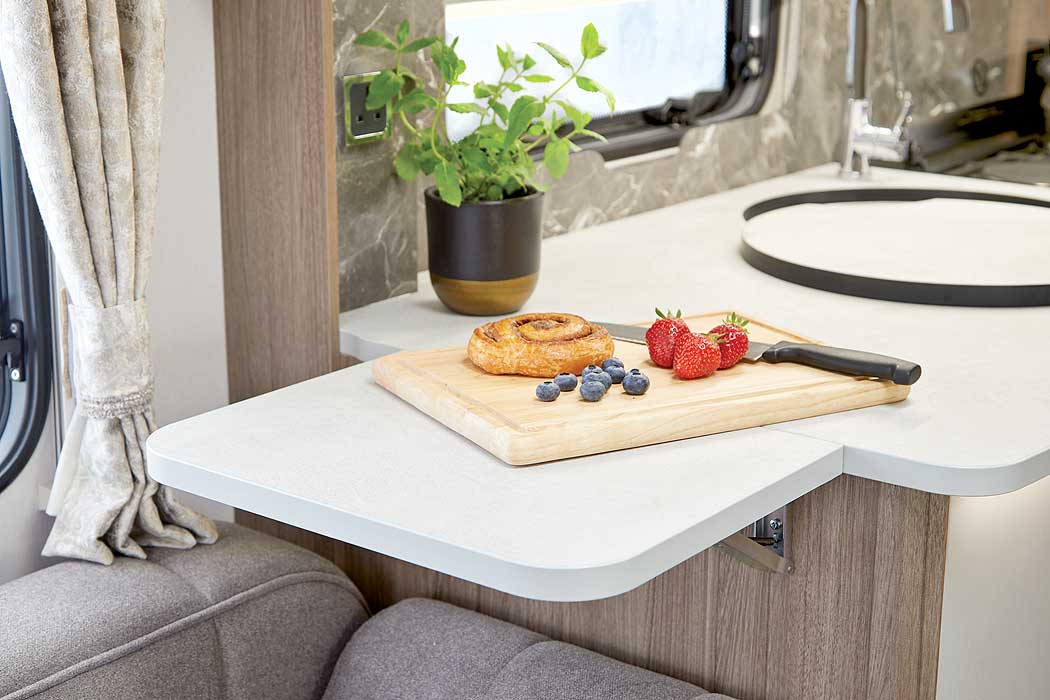

• NEW Lift up kitchen worktop extension in ‘Raja’ finish
• Thetford dual fuel hob with cast iron pan rest, electronic ignition, glass lid and flame failure device
• Thetford oven features an interior light and separate grill with chrome finish and improved efficiency
• LED touch sensitive dimmable under surface and locker ambience enhancing lighting

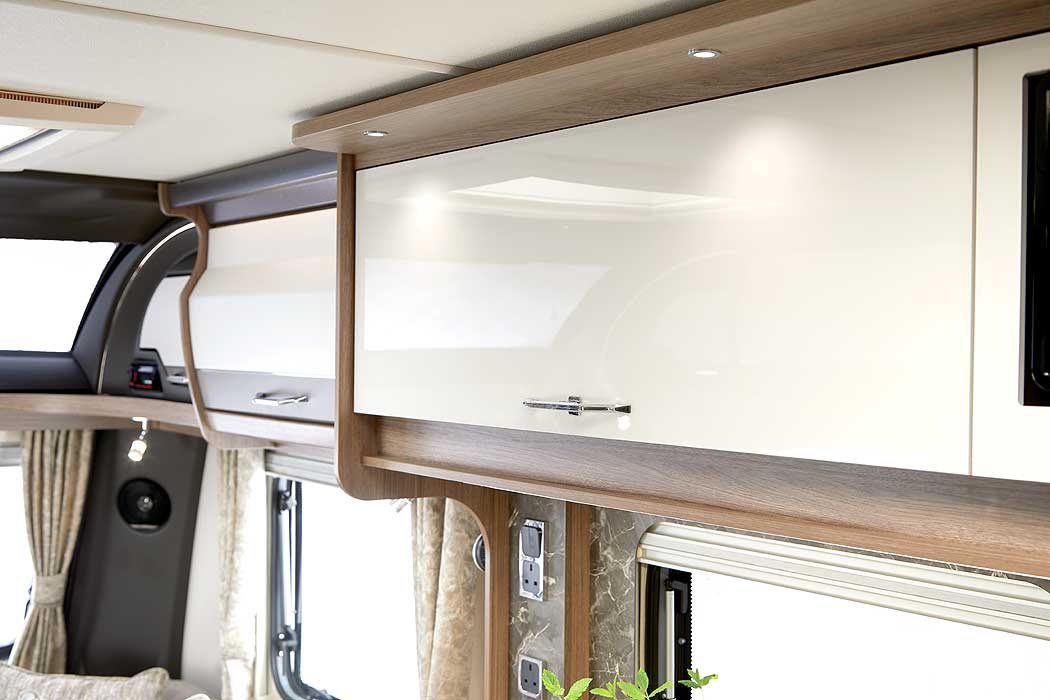

• NEW Wider kitchen upper locker doors in ‘Nebbia’ acrylic with soft close hinges
• NEW Kitchen upper locker door in ‘Tibero’ with ‘Pebble’ & ‘Titan’ design with soft close hinges
• NEW Kitchen lower flat doors in ‘Pebble’

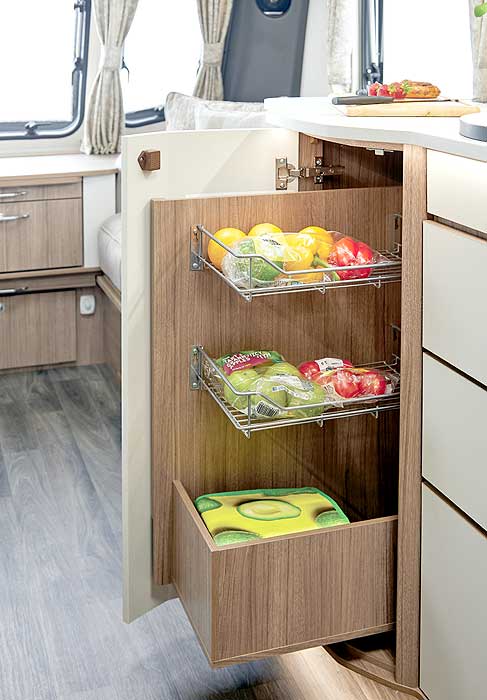

• Positive catches to main kitchen drawers

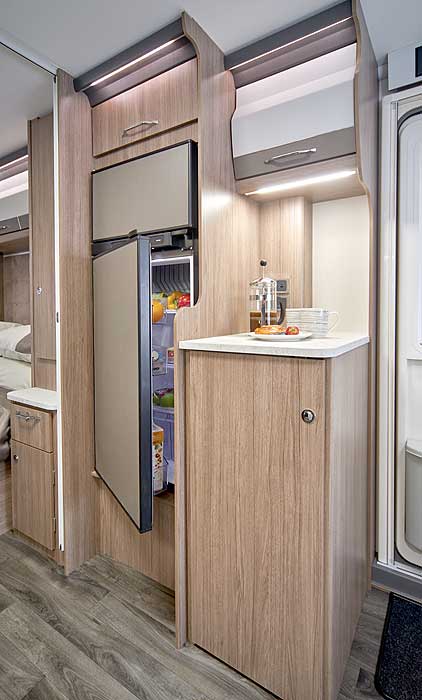

• NEW Thetford N4090 91 litre electronic fridge freezer

Bathroom Features

• White domestic style ladder radiator in bathroom

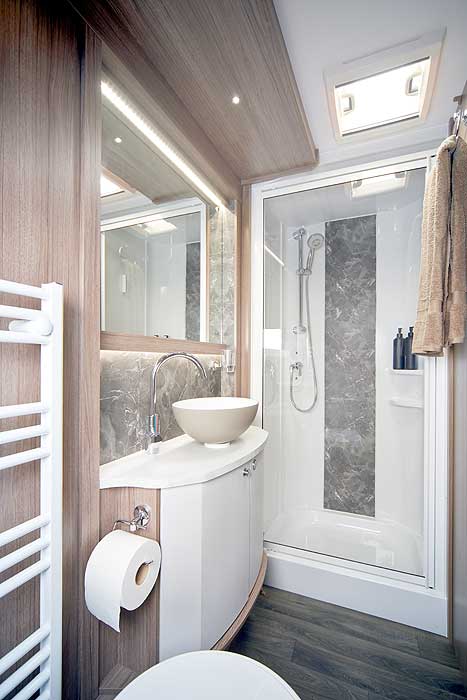

• Luxurious fully lined domestic style square shower cubicle with built in contrast panel, storage, LED downlight and pivot door
• Folding hanging hook in the shower area
• Comet shower mixer tap
• Chrome finish bathroom fittings
• Thetford C262 swivel toilet with electric flush and wheeled waste container
• Opaque window to all bathrooms
• Smooth action mechanism Softrollo pleated blind with flyscreen to bathroom window
• NEW Vanity splashback in ‘Sky Grey’ design

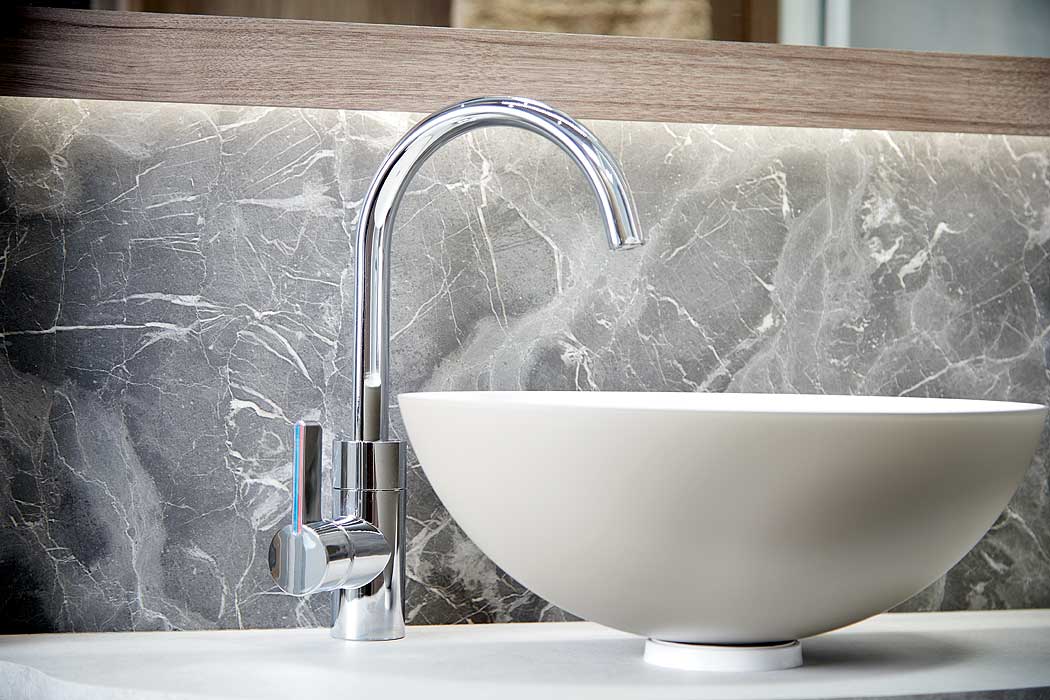

• Vanity chrome ceramic tap
• Contemporary dual coloured co-ordinated oval top mounted vanity bowl
• NEW Stylish curved vanity unit in ‘Pebble’ design

Audio and Entertainment

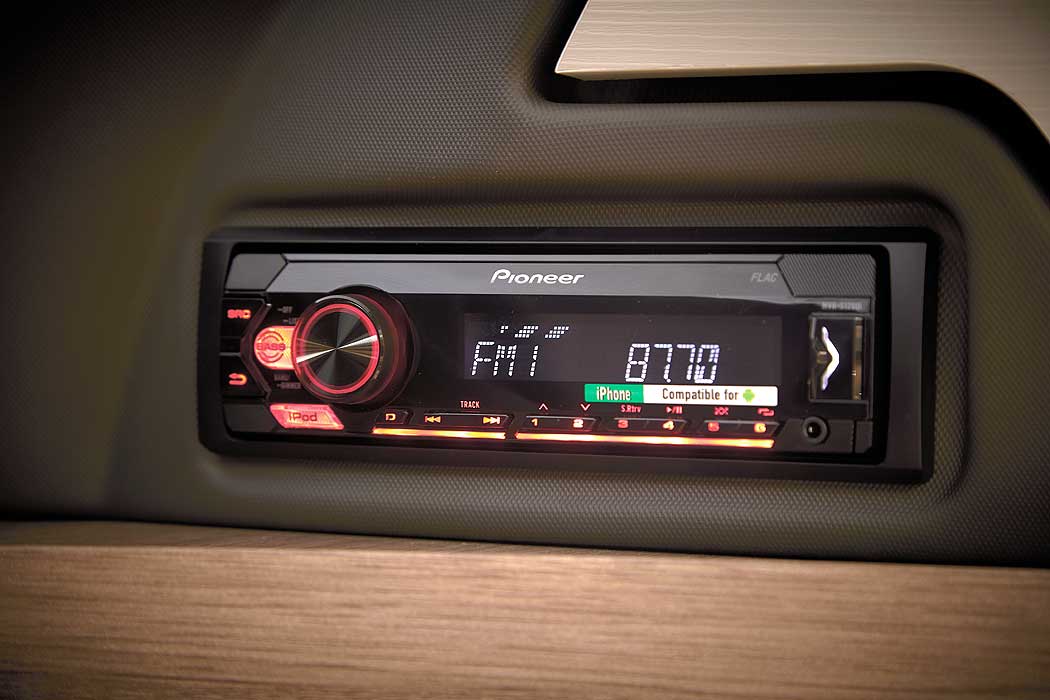

• FM radio

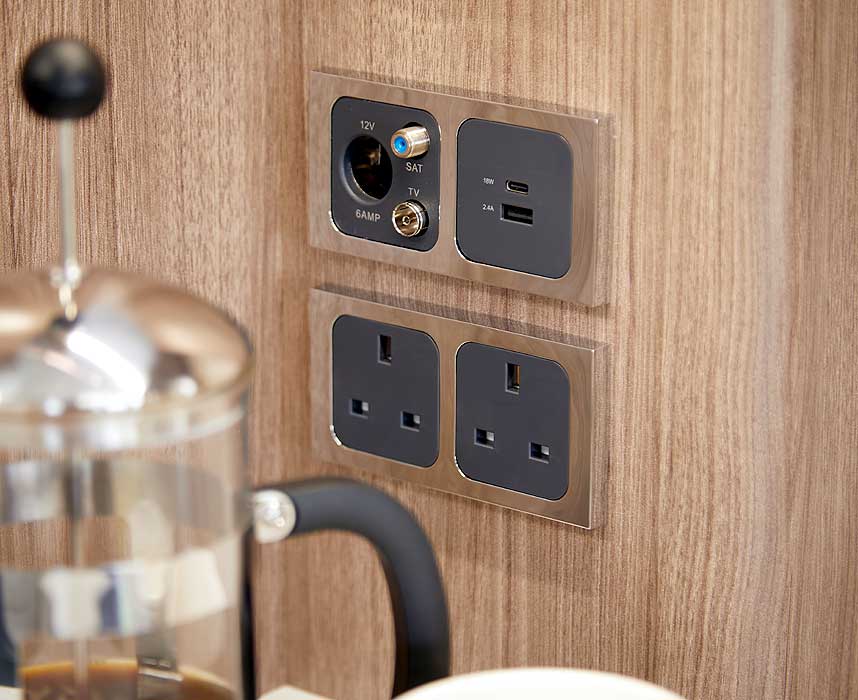

• Dedicated TV station with 230v, 12v, satellite and aerial sockets
• Dedicated TV station with 230v, 12v, and aerial sockets in fixed bed areas
• NEW Double USB socket and ‘C’ Port socket situated at the main dedicated TV station

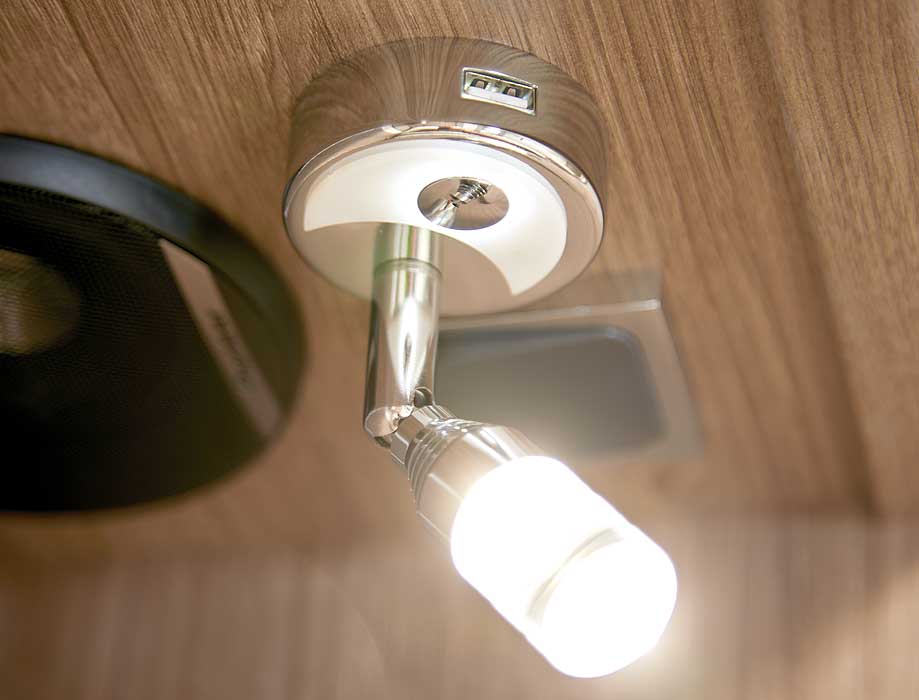

• Integral USB socket in the spotlights to fixed bed areas
• Mobile phone charging unit ( integrated into the bulkhead ) suitable for iPhone 8 & Samsung 7 and above
• NEW Teleco Teleplus TV aerial with integrated FM/DAB reception capability

Electrical Features

• LED reading spot lights with touch controls and night-light setting
• LED down lighter spot lights
• 100% low energy LED lighting throughout
• Floor level courtesy lighting
• Mains connection lead ( 25m )
• 12 volt system ( 20 Amp ) with battery charger and mains transformer
• 12 volt ‘Seattle’ multi-function digital control panel with awning light, water pump, 12v lights and master switches

Plumbing and Heating

• Alde wet central heating and hot water system with 5 year Glycol, 3030 boiler with integrated pump and programmable LCD touch screen control panel
• Whale Watermaster inlet point – intelligent control with high flow submersible pump

Alde's wet central heating system has been meticulously planned and installed to ensure you always enjoy the optimum temperature throughout your caravan.

The radiant, hydronic central heating offers many benefits:

• It heats every part of the caravan creating a warm and inviting environment
• The glycol heating fluid circulates quietly around your caravan ensuring the least amount of disturbance
• It works off both gas and electric power sources which, can be combined when required
• Low 12V battery consumes a low amount of energy, preserving your battery life
• Pipes and radiators are mounted discreetly behind furniture, optimising available storage

Safety and Security Features

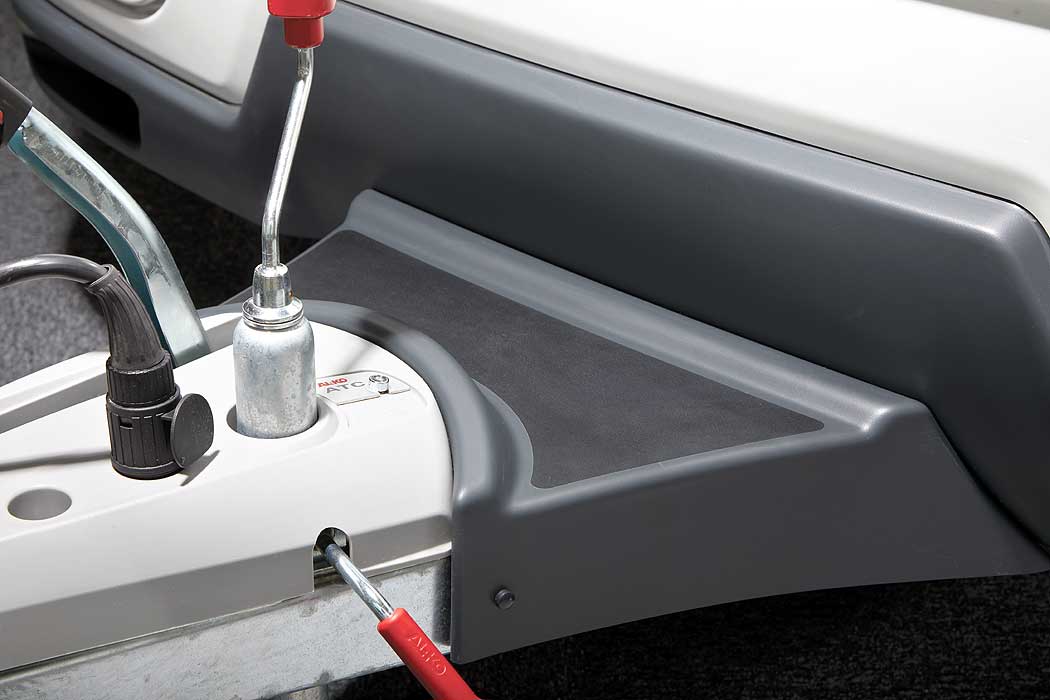

• AL-KO ( ATC2 ) Trailer Control System - Anyone who has ever encountered critical driving situations when towing their caravan will know that the caravan reacts very sensitively at high speeds – and what the risks are! Even minor avoidance manoeuvres, side winds on bridges or wind pressure when overtaking trucks can soon cause the trailer to start snaking. ATC AL-KO Trailer Control actively counteracts such phenomena!
• AL-KO AKS 3004 Stabiliser - Suppresses the initial signs of caravan instability and improves ride comfort. Four specially designed friction pads work to effectively suppress the initial signs of caravan instability and snaking movements, providing excellent ride comfort for your car and caravan combination.
• AL-KO secure wheel lock
• Phantom VanGuard remote control alarm system with PIR and tilt sensors for added security  ( fob controls the awning light )
• Optical smoke alarm
• Carbon monoxide detector
• CRIS ID number and concealed security data ID chips
• High security one key locking system supplied with 2 flip keys

Coachman VIP 575 Specifications

• Berths 4
• Axle Type: Single Axle
• Internal Length: 5800mm / 19' 0"
• Overall Length: 7430mm / 24' 5"
• Overall Width: 2310mm / 7' 7"
• Overall Height ( including T.V Aerial ): 2675mm / 8' 9"
• Maximum Headroom: 1955mm / 6' 5"
• MTPLM: 1660 kg
• Mass in Running Order: 1504 kg
• Personal Payload: 156 kg
• Bed Sizes:
  Front Double: 6’ 9” x 4’ 7” ( 2075mm x 1390mm )
  Front N/S Single: 4’ 11” x 2’ 4” ( 1505mm x 730mm )
  Front O/S Single: 4’ 11” x 2’ 4” ( 1505mm x 730mm )
  Rear Fixed Double: 6’ 2” x 4’ 6” ( 1875mm x 1370mm )
