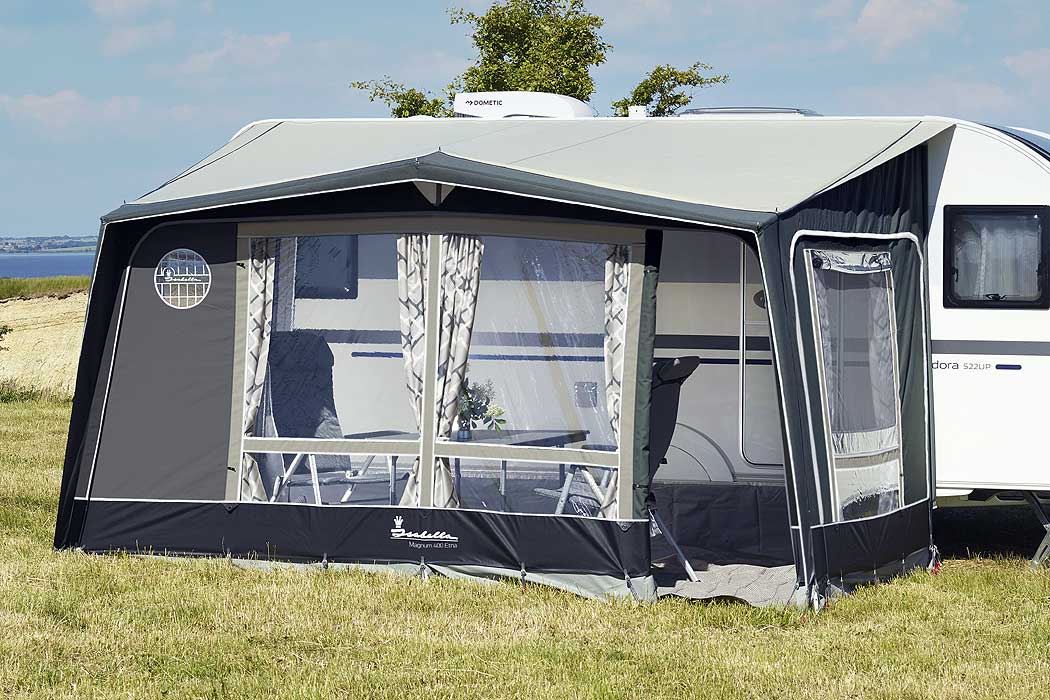

Isabella Magnum Etna 400 Porch Awning

The Isabella Magnum Etna 400 is a porch awning from Isabella that has been developed for people who are likely to be touring around rather than pitching in one place. Quick and easy to put up and touring friendly, it is supplied with Isabella's CarbonX poles. With the Magnum 400 Etna, you get a spacious touring awning with a depth of 2.5 metres and a width of 4.0 metres.

A nice feature of the porch awning is that the front and side panels can be either rolled down or completely removed giving you a number of options for ventilation. Mosquito nets are also provided ensuring you can have windows open and enjoy that great holiday read without the worrying of letting in the insect world.

If more space is required, inside or out, the Magnum 400 Etna can be extended with an Eclipse front sun canopy ( specially designed for the Magnum ), Cosy Corner ( specially designed for the Magnum ), and an annex giving you an extra bedroom or additional storage space. ( Please Note: These are all optional extras - they are not supplied with the awning as standard and require an additional purchase. )

The main awning material is called Isacryl and has been developed by Isabella specially for awnings. It is highly breathable and therefore helps to maintain a comfortable and enjoyable climate inside the awning.

The awning is supplied with Isabella's CarbonX poles, these are light carbon-fibre reinforced fibreglass poles and suitable for permanent and touring caravanning.

The Magnum Etna 400 is suitable for caravan heights of between 235 and 250cm.

Awning Features

• Suitability: Suitable for caravans with an awning rail height between 235cm and 250cm
• Panels: Removable / fold down front and side panels
• Windows: Large front windows
• Mosquito Net: Mosquito nets in both sides.
• Ventilation: Front ventilation
• Roof Detail: Extra long roof wings for additional strength and optimal fit.
• Comes As Standard With: Curtains, Wheel Arch Cover, Draught Skirt, Side Veranda Pole, FixOn, an Awning Bag, a Pole Bag, a Peg Bag and a Peg Remover

Awning Specifications

• Depth: 250cm
• Width: 400cm
• Number of Doors: 4
• Main Awning Material: Isacryl 295 g/m² - a spinneret-dyed ( i.e. the fibres are dyed ), textured-weave, durable acrylic material. Isacryl has the highest achievable fade-resistance thanks to the pigmentation method. The density of the weave plus the impregnation all the way through the material prevent water ingress. Nevertheless, Isacryl is a breathable material, which facilitates the best possible indoor climate in the awning.
• Roof Material: Isaroof 285 g/m² - a UV protective acrylate-coated polyester, with an added top coat in 3 layers.
• Frame Type: CarbonX - a fibreglass frame with Isafix locking clamps. Suitable for both permanent and touring caravanning. Carbon Fibres are combined with glass fibres in varying amounts, according to pole diameters, to offer maximum strength.

Isabella Poles Types

Carbon X Frame

A carbon-fibre reinforced fibreglass frame, is suitable for both permanent and touring caravanning. Carbon Fibres are combined with glass fibres in varying amounts, according to pole diameters, to offer maximum strength.

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Zinox Steel Frame

The Zinox Steel Frame is hot galvanised both inside and out to extend its life and to meet all load bearing requirements. The steel frame is made of ISO-certified high-strength steel. The strength of the Zinox steel frame makes it particularly suitable for pitching your caravan permanently - and it is included with all All-in-One and winter part awnings, because caravanning in the off-peak seasons demands geat structural stability due to weather conditions such as strong winds and snow.

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Zinox MegaFrame

The Zinox MegaFrame is a durable tubular steel frame ( material thickness: 32mm / 1.2mm ) with welded corners and double screw lock on the poles. MegaFrame is designed for year-round use with a full awning which can remain standing all year and can withstand powerful storms, snowfall and torrential rain.

The Zinox MegaFrame is supplied with two extra rafter poles, as well as one Hercules 32.5mm

Isabella Sizing Chart

To Find The Correct Awning Size For Your Caravan

Full Awnings
To find the correct size of awning for your caravan you need to find the 'A' measurement. This is often given in handbooks by the manufacturer of the caravan, but if you cannot find the 'A' measurement then you can measure it yourself.

Position the caravan on even, level ground. Measure from the ground level at a point directly below the awning rail at the front of the caravan to the ground level point directly below the awning rail at the rear of the caravan. You can do this quite easily using a piece of string or chord. This measurement will be the red line shown on the image.

Porch Awnings
Generally, you do not use the 'A' measurement for porch awnings. Instead you will want the awning rail height from ground level - shown as 'H' on the diagram. Unlike the awning rail height which is a fixed dimension, the width of the awning - shown as 'L' on the diagram is variable. Some people do not like to fix an awning across a window as shown on the left hand side of the diagram, so they would probably buy an awning either with a smaller width or wider width if room permits. Essentially the choice is yours to make.
