Isabella Winter

Price:  £656.00(Inc. 20% VAT)

Brand:  Isabella
Awning Type:  Porch Awning

Stock Availability:  Special Order Item
1) Place an order and we will check stock availability.
We will check our OWN stock AND stock availability with ISABELLA
2) Contact Us before placing an order and we will check stock availability for you. Contact Us



Currently Out Of Stock

Isabella Winter LogoIsabella Winter Porch Awning

As the name implies, the Isabella Winter porch awning is made for the rigours of winter with heavy duty materials and a special roof angle that helps to prevent snow building up on it. The strong, steel Zinox Poles from Isabella, give strength and stability to the awning and are hot galvanised both inside and outside. Because of their strength, Zinox poles are ideally suited to use with permanently pitched and winter porches.

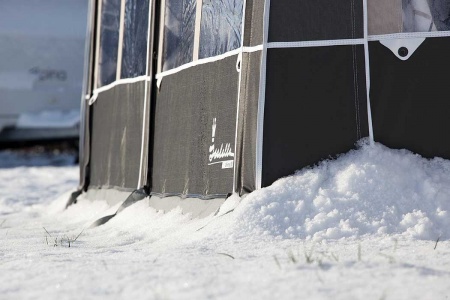

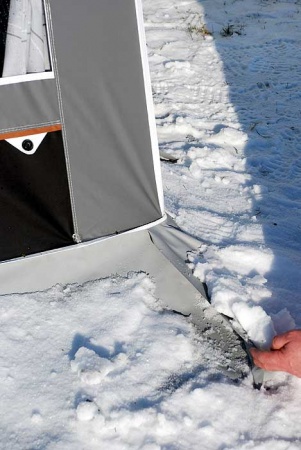

Other features of the Winter porch awning include an extra wide external mud flap ( see photograph detail ), windows that are designed with materials for withstanding the lower temperatures and flexible pegging - all features that shout out this porch awning has been made to withstand even snowy conditions.

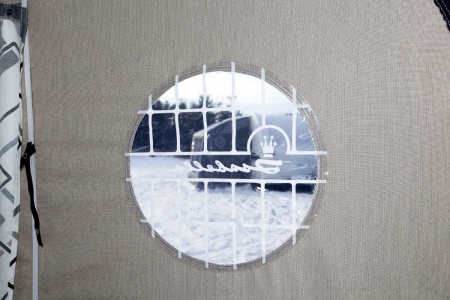

The awning uses a canvas material that is made of PVC polyester, an intensely resilient and water resistant material which is easy to clean and maintain. The awning has two doors; one either side. This can be very handy if there is a prevailing wind as you can choose to enter or leave by the door that best suits the conditions. The awning also has zipped ventilation ( see photograph detail ).

The Isabella Winter porch awning can be fitted to caravans with an awning rail height of between 235cm and 250cm. It has a depth of 1.8 metres and a width of 2.2 metres providing just under 4 square metres approximately of extra room to your caravan.

The Isabella Winter comes with a number of items as standard which include, a set of curtains, a draught skirt, a wheel arch cover, FixOn, awning bag, pole bag, peg bag and a peg remover.

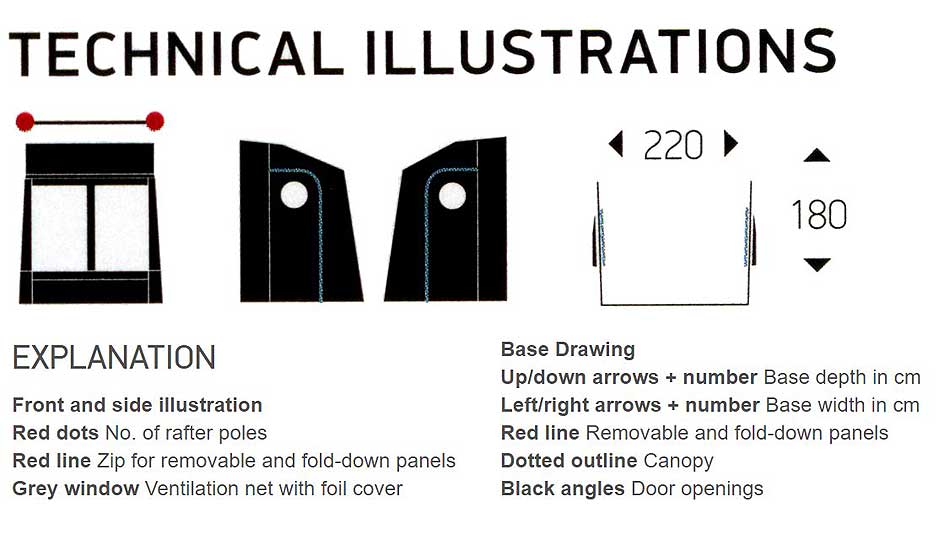

Isabella Winter Technical illustrations

Awning Features

  • Special Details: External mud flap. Special roof angle. Extreme window foil.
  • Supplied As Standard With: Set of curtains, Draught Skirt, Wheel Arch Cover, FixOn, Awning Bag, Pole Bag, Peg Bag and a Peg Remover

Awning Specifications

  • Suitability: Suitable for caravan heights of between 235cm and 250cm
  • Depth: 180cm
  • Width: 220cm
  • Number of Doors: 2
  • Mud Flap: External
  • Main Awning Material: PVC / Polyester an intensely resilient and water resistant material.
  • Frame Type: Zinox Frame - a durable tubular steel frame with welded corners and double screw lock on the poles.

Isabella Poles Types

Carbon X Frame

A carbon-fibre reinforced fibreglass frame, is suitable for both permanent and touring caravanning. Carbon Fibres are combined with glass fibres in varying amounts, according to pole diameters, to offer maximum strength.

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Isabella Carbon X Poles

Zinox Steel Frame

The Zinox Steel Frame is hot galvanised both inside and out to extend its life and to meet all load bearing requirements. The steel frame is made of ISO-certified high-strength steel. The strength of the Zinox steel frame makes it particularly suitable for pitching your caravan permanently - and it is included with all All-in-One and winter part awnings, because caravanning in the off-peak seasons demands geat structural stability due to weather conditions such as strong winds and snow.

Isabella Zinox Poles

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Zinox MegaFrame

The Zinox MegaFrame is a durable tubular steel frame ( material thickness: 32mm / 1.2mm ) with welded corners and double screw lock on the poles. MegaFrame is designed for year-round use with a full awning which can remain standing all year and can withstand powerful storms, snowfall and torrential rain.

The Zinox MegaFrame is supplied with two extra rafter poles, as well as one Hercules 32.5mm

Isabella Mega Poles

Isabella Sizing Chart

Isabella Size
'A' Measurement
661 - 685
686 - 710
711 - 735
736 - 760
761 - 785
786 - 810
811 - 835
836 - 860
861 - 885
886 - 910
911 - 935
936 - 960
Isabella Size
'A' Measurement
961 - 985
986 - 1010
1011 - 1035
1036 - 1060
1061 - 1085
1086 - 1110
1111 - 1135
1136 - 1160
1161 - 1185
1186 - 1210
1211 - 1235
1336 - 1360

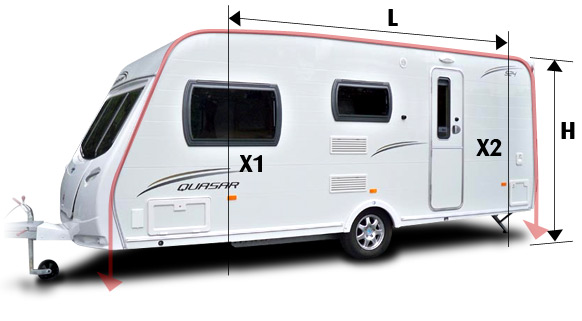

Isabella Sizing Chart IllustrationTo Find The Correct Awning Size For Your Caravan

Full Awnings
To find the correct size of awning for your caravan you need to find the 'A' measurement. This is often given in handbooks by the manufacturer of the caravan, but if you cannot find the 'A' measurement then you can measure it yourself.

Position the caravan on even, level ground. Measure from the ground level at a point directly below the awning rail at the front of the caravan to the ground level point directly below the awning rail at the rear of the caravan. You can do this quite easily using a piece of string or chord. This measurement will be the red line shown on the image.

Porch Awnings
Generally, you do not use the 'A' measurement for porch awnings. Instead you will want the awning rail height from ground level - shown as 'H' on the diagram. Unlike the awning rail height which is a fixed dimension, the width of the awning - shown as 'L' on the diagram is variable. Some people do not like to fix an awning across a window as shown on the left hand side of the diagram, so they would probably buy an awning either with a smaller width or wider width if room permits. Essentially the choice is yours to make.
