Vision Plus VP4 Digital TV Amplifier & Signal Finder

Price:  £33.95(Inc. 20% VAT)
+

Brand:  Vision Plus

Availability:



In stock


Vision Plus LogoVision Plus VP4 Digital TV Amplifier

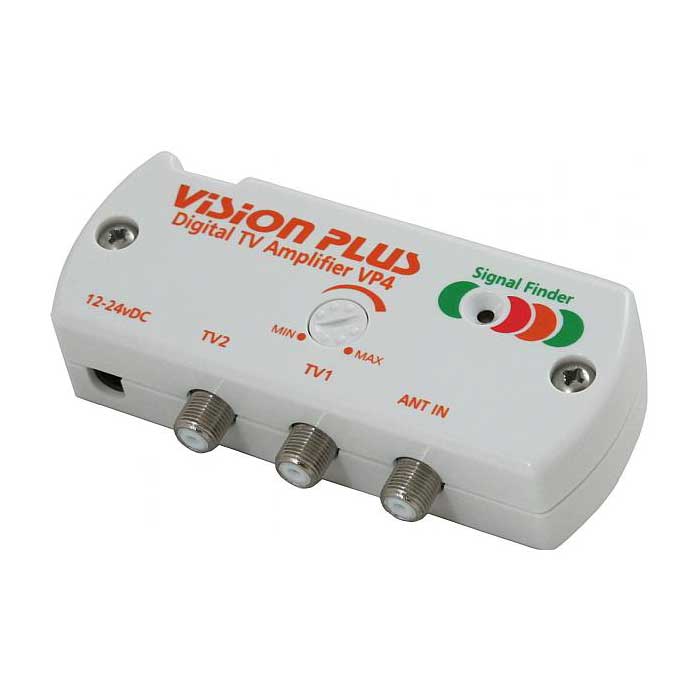

The Vision Plus VP4 Digital Amplifier with signal finder is fully wideband for television transmissions and is designed to be used with Vision Plus STATUS antennas with orange logos that do not have pullout telescopics.

It can also be used with the following range of antennas that only provide a TV output: IMAGE 410, IMAGE 420 IMAGE 440, IMAGE 610 and IMAGE 620.

This unique product also incorporates a dedicated Signal Finder to locate your nearest / strongest TV signal transmitters.

This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.

Specifications:

  • On/Off switch
  • Variable gain control
  • 2 TV outputs

  • Frequency Range UHF 470-862 MHz
  • Amplifier Gain Max 15dB
  • Gain Adjustment 0 to ≃ 15 dB
  • Flatness +1.5dB
  • Noise Figure 2.2dB
  • Output Impedance 75ohms
  • Signal Handling 80 dBμV
  • Power Supply 10.8-28v DC
  • Power Consumption 85 mA
  • Dimensions ( mm ): 115w x 46h x 28d

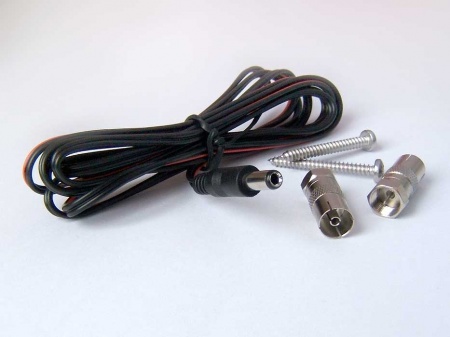

What Is Supplied: ( see photograph )

  • Vision Plus VP4 TV & Radio Amplifier with Signal Finder Unit
  • A lead with plug for connecting the power supply ( Please note: a power supply unit is not provided )
  • Two coax to 'F' screw adaptors / convertors
  • Two fixing screws

The amplifier requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery. If wiring direct to a battery VisionPlus recommend an in line fuse ( max 5A ) on the positive wire. If unsure please consult with a qualified installer.

Vision Plus VP4 Digital TV Amplifier & Signal Finder

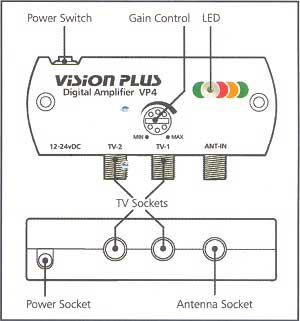

Vision Plus VP4 DiagramPositioning and Fixing

In order to boost / amplify the signal that your television receives it is necessary to fit the VP4 amplifier between your aerial / antenna and the television itself. This means that the lead coming from your aerial must first go into the amplifier using the port / socket marked 'ANT IN'. You will then take a 'flylead' from any one of the sockets marked TV1, TV2 or TV3 to the television. If you have a standard coax flylead you can use the adapters provided with the VP4 to enable the connection.

If you so desire, the VP4 can be fixed to the inside of a cupboard using the units fixing points and the fixing screws provided - but this is not absolutely necessary, it can be left to sit freely if you wish. If you do fix it, remember there is an on /off switch on the unit that you may want to have access to.

Power Source

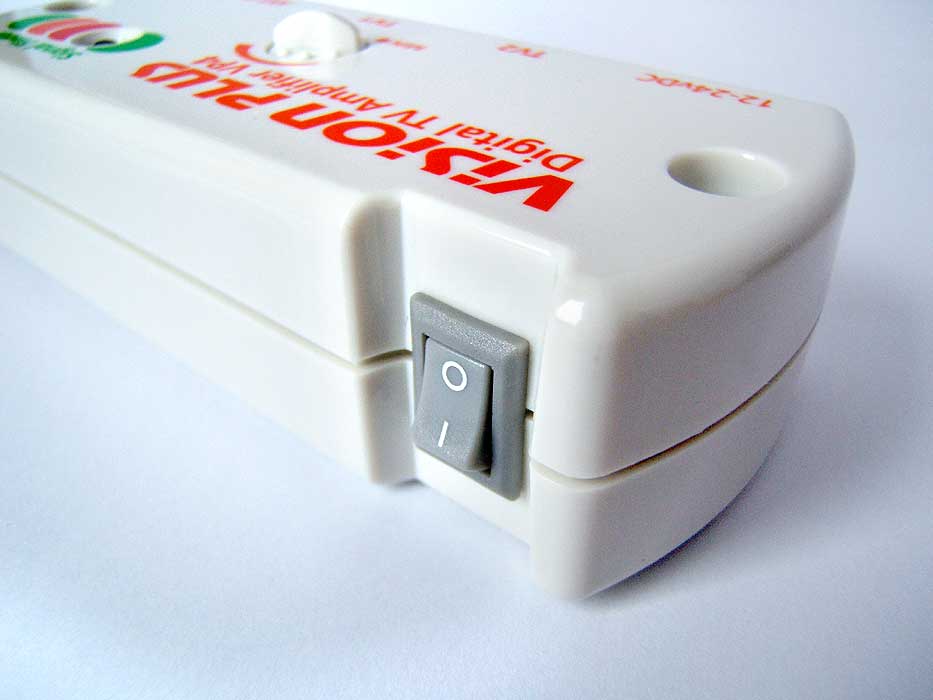

The amplifier requires a 12-24 volt power supply and can be wired directly to the Vision Plus VP4 Switchbattery. However, you should note that if are planning to wire directly to the battery then an in-line fuse ( 5amp max ) must be fitted on the positive wire. Alternatively, you can use a 12v DC Mains Adapter ( not supplied )

Brief Operating Instructions for the Vision Plus VP4

These are not comprehensive instructions but a guide to give you a good idea of how the VP4 operates. When you switch on the VP4 the LED light on the top will light up. It is now a matter of rotating / moving the aerial whilst watching the signal indicator to find the direction of the best signal from the transmitter.
